Canon Elura 60

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Product Description From Canon:

Elura camcorders feature Canon's DV Photo Plus. DV Photo Plus unleashes the full digital imaging power of your Canon Megapixel camcorder, promising a superior level of clarity, color and excellence for video and photos. The Elura 60 camcorder comes with a host of features guaranteed to enhance your home movies and digital photos. Canon's DV Photo Plus achieves premium-quality video and photos by combining four key technologies: Genuine Canon Optics, DIGIC DV Image Processor, Megapixel CCD Image Sensor, and Print and Share. DV Photo Plus - DV Photo Plus unleashes the full digital imaging power of your Canon Megapixel camcorder, promising a superior level of clarity, color and excellence for video and photos. Canon's DV Photo Plus achieves premium-quality video and photos by combining four key technologies Genuine Canon Optics - Canon MiniDV camcorders feature high-precision lenses designed specifically for their use. Each camcorder has a unique lens that matches its CCD for optimal quality. Canon's camcorder lenses feature the same distinguished quality found in 35mm cameras and broadcast TV cameras.

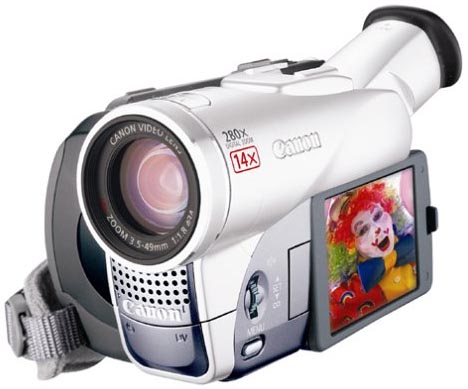

Canon Elura 60 - Front View

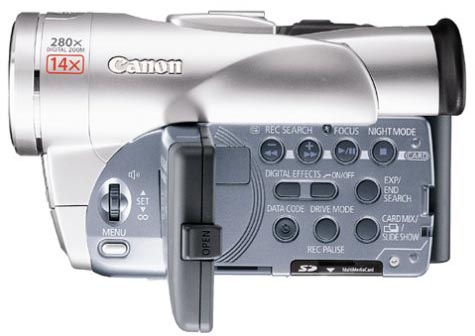

Canon Elura 60 - Left View

Specifications

Video format: MiniDV
Power Supply: 7.4 V DC
Power Consumption: 2.6W using viewfinder, 3.3W using LCD
TV system: NTSC
Video recording system: 2 rotary heads
Image sensor: 1/4.5-inch CCD, approx 1.33 MP
Tape format: MiniDV
Max. recording time: SP: 80 min, LP: 120 min
Fast forward/rewind time: 2 min. 20 sec. (60 min. cassette)
Lens: f-3.5-49, f/1.8-3.1, 14x zoom
Focusing system: TTL Autofocus
Min. focusing distance: 3 ft. 3 3/8 in.
Max. shutter speed: 1/2000
Min. illumination: 1.8 lx (using night mode)
Recommended illumination: 100 lx
Viewfinder: 0.33-inch TFT color (approx. 113,000 pixels)
LCD screen: 2.5-inch TFT color (approx. 123,000 pixels)
Microphone: Stereo condenser
DV terminal: 4-pin connector
Operating temperature range: 32-104 degrees F (0-40 degrees C)
Dimensions: 3.1 x 2.9 x 5.1 inches
Weight: approx. 1.1 lbs.

User Manual

A free operating manual is available in PDF format—see the link at the top of this page.
