Home : Equipment : Canon : Cameras : Legria DV Series : Legria FS 37

Canon Legria FS 37 SD Video Camera

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

Product Description:

Canon's range of compact digital video cameras is continued with the Legria FS37. This feature packed camera has 41x zoom, Dynamic Image Stabilizer, high quality sensor, a large LCD screen, and Video Snapshot.

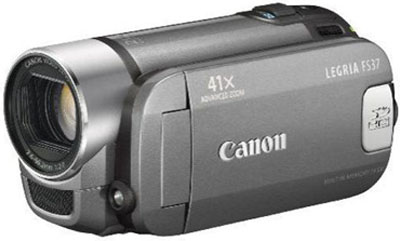

Canon Legria FS-37 Video Camera

Features

Specifications

Format Type: Flash - 16GB Built-in and SD / SDHC
Sensor: 1/6-inch CCD Interlace
Image Processor: DiG!C DV II
Video Data: MPEG2
Recording Modes: XP 9Mbps / SP 6Mbps / LP 3Mbps
Total Pixels: 800,000
Still Image: Yes
Real Widescreen 16:9: Yes
Advanced / Optical / Digital: 41x / 37x / 2000x
Focal Length: 2.6 - 96.2mm
Maximum Aperture: f/2.0 to f/5.2
Minimum Focusing Distance: 10mm (wide angle)
Shutter Speed: 1/6 - 1/2,000 second
Image Stabilizer: Electronic
Lens Cover: Built-in Automatic
AF System: TTL AF / 9 AiAF for advanced focusing options
Focusing Range: Auto / Manual / Forced Infinity
Light Metering Method: Centre-weighted average / Evaluative metering
Exposure Compensation: 11 steps via joystick
White Balance Mode: Auto, Daylight, Tungsten, Set
Min Illumination: 1.1 lux (Night Mode)
Night Mode: Yes (1/6 sec)
Video Light: LED Video Light
View Screen / Pixels: Widescreen 2.7 / 123,000
Viewfinder (Colour): -
AE Program Modes: Auto / P / SCN / TV
Scene Modes: Portrait / Sports / Night / Snow / Beach / Sunset / Spotlight / Fireworks
Effects: Art / Black & White / Sepia / Mosaic
Fades: Auto Fade / Wipe
Audio Data: Dolby Digital 2-ch (AC-3 2ch)
Audio Level Metering: Yes
Wind Screen: Auto / Off
Capture Size: 540,000 pixels
Memory Card Type: SDHC / SD
Still Image Resolution: 1024x768, 640 x 480
Still Shooting Functions: 9-point AiAF
Battery (standard): Average 105 min, Max 210 min, Intelligent Battery
Charging Time: 140 min
Quick Start/Power Save: Yes, linked with LCD
Built-in Charger: Yes
Terminals: USB 2.0 Hi Speed / AV output
Operating Platforms: Camera - PC: Windows XP SP2/SP3, Vista (including SP1/SP2), Windows 7; Mac: OS X 10.4 to 10.6. Pixela ImageMixer 3 SE Software - PC: Windows XP SP2/SP3, Vista SP1/SP2, Windows 7
Self Timer: 10 seconds
Search: Calendar / Timeline / Date
Dimensions W x H x D: 55 x 59 x 121mm
Weight including battery: 225g
