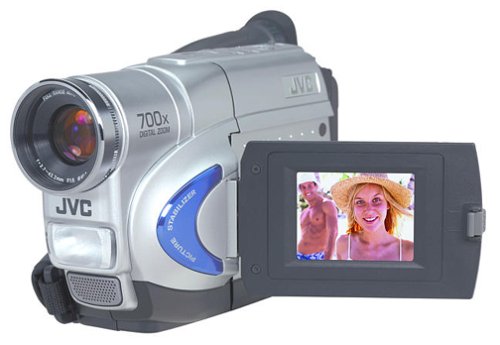

GR-SxM260 Super VHS-C Camcorder

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Product Description From JVC:

The GR-SXM260 is a new compact stylish design. This newly designed SVHS-C model features a 2.5" LCD and built-in auotlight.The JVC GR-SXM260U boasts three recording modes: It uses Super VHS recording to deliver up to 60% better resolution than our standard models for better quality home movies. For quality and economy, the Super VHS ET mode lets you take those high resolution videos using any VHS-C tape. For compatibility with any VHS video recorder, standard VHS is also available.

A 2.5" LCD view screen allows the camera to be operated from any angle, for maximum comfort. The picture stabilizer gets rid of annoying picture shake. The 700X zoom makes sure you don't miss any of the action. A built-in light improves the picture in night time situations. Endurance Shooting allows up to two hours recording time with the provided battery pack. When you are done recording, the tapes play back & and can be shared in any VHS video recorder using the provided VHS-C Playpak.

GRS-xM260

Specifications

Video format: Super VHS-C
Audio: Mono
Eyepiece viewfinder: 0.5 inches, black & white CRT
LCD screen size: 2.5 inches
LCD swivel: Yes, 270 degrees
Aperture: F/1.6
Optical zoom: 16x
Digital zoom: 700x
Autolight: Yes
Hot shoe for external light: No
Image stabilization: Yes
Infrared capability: Yes, Super LoLux
Remote included: No
Headphone jack: Yes
Digital still capability: No
MPEG movie mode: No
Included still memory: N/A
Preset titles: Yes
Custom titling: Yes
Fade options: Various fader effects
Special effects: 70 combinations of digital effects and scene transitions
Motion sensor: No
Audio sensor: No
USB streaming: No
IEEE1394 (Firewire) output: No
USB output: No
Included in box: SXM260 camcorder, Shoulder Strap, Compact VHS cassette playpak, AC Power Adapter, Battery Pack and Lens cap
Width: 4.45 inches
Height: 4.61 inches
Depth: 7.84 inches
Weight: 1.9 pounds
Warranty labor: 90 days
Warranty parts: 1 year
