JVC GR-D200

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

MiniDV Camcorder

Features

Product Description From Amazon.com:

The GRD200 features a 1.33-megapixel CCD for superior video (540 Lines of resolution) and still photos (1600 x 1200), a bright 2.5-inch LCD, 200x digital zoom, a powerful software package, and much more.

JVC GRD200 - Front View
JVC GRD200 - Rear View

Specifications

Video format: MiniDV
CCD: 1.33 Megapixel, 1/4" CCD
HG Digital Stills: 1600x1200/1280x960/1024x768/ 640x480
Web Camera Function and MPEG-4 Email Video Clips: Yes
Digital Hyper Zoom: 200X Digital Hyper Zoom with Spline Interpolation
LCD Monitor: 2.5" 110k-pixel Amorphous-Silicon LCD Color Monitor
Viewfinder: Color Viewfinder

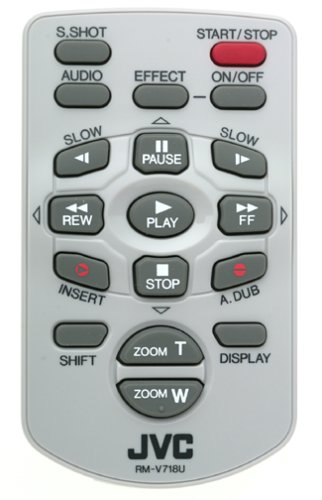

Remote Control: Included
Lens: F1.8 Bright
Flash: Built-in
Memory Card: MultiMedia Card (8MB MMC incl.)/ SD Memory Card compatibility
Optical Hyper Zoom: 10X
Digital Image Stabilizer: Yes
16x9 Squeeze Mode: Yes
PCM Digital Stereo Audio: Yes
Snap Shot Modes: Full screen, Frame, Pin-up, Negative, Multi-Picture, 4-Frame / 9-Frame, Digital Still Output
Iris Lock: Yes
Wide Mode: Yes
Modes: Manual focus, Exposure, and White Balance modes
Black Fader: Yes
Digital Wipes and Fades: Yes
Shutter: Variable-speed Shutter (1/500,1/250, 1/100, 1/60 sec.)
Recording:
High Density Image Recording, Mini DV NTSC (SD specifications)
Battery: BN-V408U 800 mAh Lithium-ion, High Capacity, rechargeable battery pack
AC Adapter: Built-in AC Power Adapter/battery charger
i.Link Digital Input/Output (IEEE 1394 compliant) DV in/out: Yes
S-Video Output: Yes
Interface: USB High Speed Interface
Software: Digital PhotoNavigator 1.0, Digital PhotoNavigator for Mac, Imagemixer VCD 1.1, Imagemixer/ USB streaming driver, Title converter, USB Mass Storage class Driver, USB Video Streaming Driver, G.726 Decoder, Adobe Acrobat Reader. These programs do not operate with all operating systems.
In the box: Shoulder strap, Editing Cable, USB Compatible Cable, 8MB MMC
Analog Inputs: Yes
Audio Dubbing: Yes
Power-Linked Operation: Yes
Playback Digital Zoom: Yes
DV Navigation: Yes
Power: 7.2 Watts using battery
Dimensions: 3.62" (92mm) x 2.52" (64mm) x4.7" (119mm)
Weight: 1.05lbs (480g)
