JVC GR-D30 MiniDV Camcorder

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

Features

Product Description From JVC:

This JVC camcorder is designed for those who are searching for a fun and slimline camcorder while maintaining a full feature package within. The GR-DV30US boasts a 680,000-Pixel CCD Super High Band Processor for 520 lines of horizontal resolution. The maximum user friendliness is achieved with Power-Linked Operation (always ready to record), Night Alive ( for low-light recording), High Resolution 2.5" Amorphous Silicon LCD Color Monitor, 700X Super Digital Zoom with Spline Interpolation, Digital Picture Stabilizer and Long Time Recording Capability.

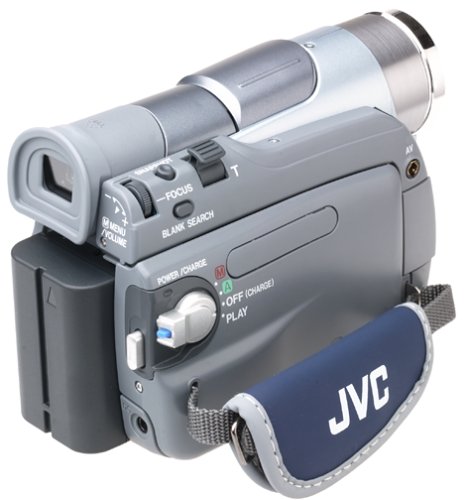

GRD30 - Left View

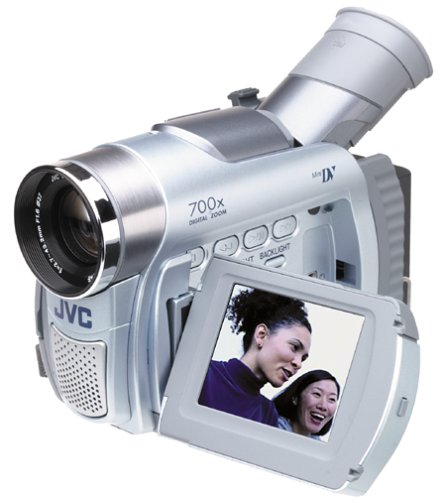

GRD30 - Right View

Specifications

Video format: MiniDV
Lens: F1.6 Bright lens
CCD: 680,000 Pixel CCD
LCD Monitor: 2.5" High Resolution, 270-degree rotating LCD color monitor
Digital Hyper zoom: 700X Digital Hyper Zoom with Spline Interpolation
Optical Hyper Zoom: 16X Optical Hyper Zoom
Digital Image Stabilizer: Yes
Power-Linked Operation: Yes
Viewfinder: Black and White Viewfinder
16x9 Squeeze Mode: Yes
PCM Digital Stereo Audio: Yes
Iris Lock: Yes
Wide Mode: Yes
Modes: Manual focus, Exposure, and White Balance modes
Black Fader: Yes
Digital Wipes and Fades: Yes
Shutter: Variable-speed Shutter (1/500,1/250, 1/100, 1/60 sec.)
Recording: High Density Image Recording, Mini DV NTSC (SD specifications)
Battery: BN-V408U 800 mAh Lithium-ion, High Capacity, rechargeable battery pack
AC Adapter: Built-in AC Power Adapter/battery charger
i.Link Digital Input/Output (IEEE 1394 compliant) DV in/out: Yes
S-Video Output: Yes
In the box: Shoulder strap, AC Adapter and AV output cables
Audio Dubbing: Yes
Width: 2.7 inches
Height: 3.7 inches
Depth: 5.63 inches
Weight: 1 lb. 15 oz.
Warranty labor: 90 days
Warranty parts: 1 year
