JVC GR-D90

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

MiniDV Camcorder

Features

Product Description From Amazon.com:

The compact JVC GR-D90 is a stylish, go-anywhere digital video camcorder that incorporates all JVC's key camcorder technologies. This entry-level MiniDV camcorder is 50 percent smaller than previous models and features a 16x optical zoom, picture stabilization, digital still mode, JVC's Night Alive feature, and a large 3.5-inch LCD.

The GR-D90 offers a 680,000 CCD with 520 lines of horizontal resolution. Combined with JVC's super-hi-band processor, you'll be assured of capturing crisp, clear video. Equipped with a 16x optical zoom, the GR-D90 also features a 700x digital zoom that allows you to zoom in for incredible close-ups. You can also zoom in on any part of an image during playback with the 44x pinpoint zoom.

The GR-D90 also features PCM digital stereo sound in either 12-bit or 16-bit options. The 16-bit mode offers one set of stereo tracks and achieves the same quality as CD, while the 12-bit mode creates two sets of stereo tracks. Audio dub is possible when recorded in 12-bit mode.

The still mode is capable of capturing crystal-clear still images of up to 1,024 x 768 pixels. The images are stored onto the included 8 MB MMC memory card; the GR-D90 is also compatible with Secure Digital memory cards. You can also record still images onto the video cassette with a "shutter" sound effect in full frame or pin-up mode.

JVC GR D90
JVC GRD90 - Rear View

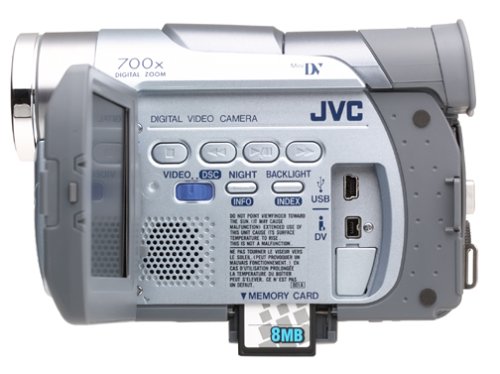

JVC GRD90 - Controls

Specifications

Video format: MiniDV
Audio: Stereo
Maximum CCD resolution: 680,000 pixels
Digital Still Image Storage: SD/ MMC Memory card slot for Digital Still Images (8MB MMC Card Provided)
Digital Still Image Resolution: 1024 X 768
Analog Input: Yes
Power-Linked Operation: Yes
Wide Mode: Yes
Manual focus, Exposure, and White Balance modes: Yes
Digital Wipes and Fades: Yes
Shutter: Variable-speed Shutter (1/500,1/250, 1/100, 1/60 sec.)
Recording: High Density Image Recording, Mini DV NTSC (SD specifications)
AC Charger: Built-in AC Power Adapter/battery charger
Digital Image Stabilizer: Yes
16x9 Squeeze Mode: Yes
PCM Digital Stereo Audio: Yes
Iris Lock: Yes
Black Fader: Yes
Eyepiece viewfinder: color LCD
LCD screen size: 3.5 inches
LCD swivel: Yes
Aperture: F/1.6
Optical zoom:
16x
Digital zoom: 700x
Autolight: No
Hot shoe for external light: No
Image stabilization: Yes

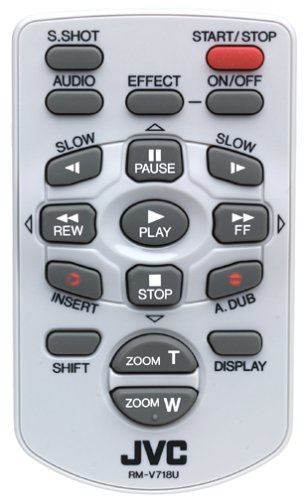

Remote included: Yes
Digital still capability: Yes
MPEG movie mode: Yes
Included still memory: 8 MB MMC Card
Custom titling: No
Motion sensor: No
Audio sensor: No
USB streaming: Yes
IEEE1394 (Firewire) output: Yes
USB output: Yes
S-Video output: Yes
Battery type: BN-V4080U 800 mAh Lithium-Ion
Included in box: BN-V408U 800 mAh Lithium-ion, High Capacity, rechargeable battery pack,Built-in AC Power Adapter/battery charger, Shoulder strap, AC Adapter and AV output cable, USB cable, 8 MB MMC card
Width: 2.97 inches
Height: 3.7 inches
Depth: 5.63 inches
Weight: 1 lb. 4 oz.
