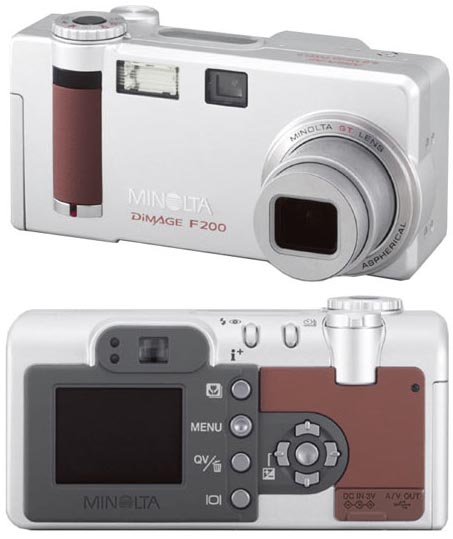

Konica Minolta Dimage F200

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Specifications

CCD:1/1.8-type interline primary-color CCD
Number of effective pixels:4.0 million
Total number of pixels:4.1 million
Camera sensitivity (ISO):Auto and 100, 200, 400, 800 ISO equivalents.
Aspect ratio:4:3
Lens construction:8 elements in 7 groups
Maximum aperture:f/2.8 (wide-angle position), f/4.7 (telephoto position)
Focal length:7.8 - 23.4 mm (35mm equivalent
Focusing range (from the CCD):0.5 m - infinity / 1.6 ft - infinity, 0.2 - 0.6 m / 0.7 - 2.0 ft in macro mode
Autofocusing system:Video AF
Shutter:CCD electronic shutter and mechanical shutter
Shutter speeds:1/1000 - 4s, bulb (15s maximum)
Built-in flash recycling time:6s (approx.)
Viewfinder:Optical real-image zoom viewfinder
Monitor LCD:38 mm (1.5 in) low-temperature polysilicon TFT color
Monitor field of view:100% (approx.)
A/D conversion:12 bits
Recording media:SD Memory cards and MultiMediaCards
File formats:JPEG, TIFF, Motion JPEG (mov), WAV., DCF 1.0 and DPOF compliant.
Printing output control:Exif print, PRINT Image Matching II, Epson USB, DIRECT-PRINT
Menu languages:Japanese, English, German, French, and Spanish
AV output:NTSC and PAL
Batteries:One CR-3V lithium battery or two AA Ni-MH batteries.
Battery performance (recording):Approximately 230 frames with a CR-V3 battery, or 140 frames with 1850 mAh Ni-MH batteries
Battery performance (playback):Approx. continuous playback time
External power source:AC Adapter AC-6 (sold separately)
Dimensions:111.0 (W) X 52.5 (H) X 32.0 (D) mm, 4.37 (W) X 2.07 (H) X 1.26 (D) in
Weight:Approximately 185g / 6.5 ounces (without batteries or memory card)
Operating temperature:0 - 40 degrees C / 32 - 104 degrees F
Operating humidity:5 - 85 percent (noncondensing)
