Konica Minolta Dimage Z1

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Konica Minolta Dimage Z1

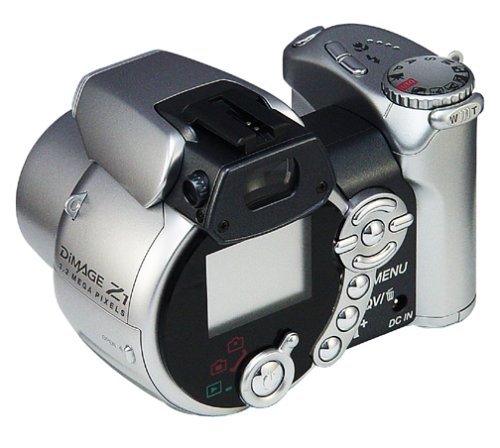

Dimage Z1 - Rear View

Specifications

Number of effective pixels: 3.2 million
CCD: 1/2.7-type interline primary-color CCD. Total pixels: 3.3 million
Camera Sensitivity: Auto and 50,100, 200, and 400 ISO equivalents
Focal Length: 5.8 - 58mm (35mm equivalent: 38 - 380mm)
Lens Construction: 10 elements in 7 groups (includes two elements with three aspheric surfaces)
Maximum Aperture: f/2.8 - f/3.5
Minimum Focus Distance: From Front of the Lens : Wide: 1.6ft. (0.5m) from front of lens, Telephoto : 6.6ft. (2m) from front of lens. From Front the CCD : Wide: 1.9ft. (0.57m) from CCD. Telephoto: 6.8ft. (2.07m) from CCD
Minimum Macro Distance(Super Macro, Standard macro): Focal length : 9.7mm, Wide and Telephoto; From front of lens : 1.6 in. (4 cm), 3.9 in. (10cm) and 47.2 in. (120cm); From CCD : 4.3 in. (11cm), 6.7in.(17cm) and 50 in. (127cm)
Maximum Magnification: 0.12x (1: 8.33), Equivalent to 0.79x (1: 1.27) in 35mm format
Area Covered at Maximum Magnification: 1.3 x 1.73 inches (33 x 44mm)
LCD Monitor: 1.5 inch (3.8cm) low-temperature polysilicon TFT color with anti-reflection coating. Total number of pixels: 113,000. Automatic monitor amplification
Field of View: Viewfinder: Approximately 98 percent, LCD monitor: Approximately 100 percent
Display-Mode Switch: Viewfinder display, LCD-monitor display. Switch Finder system allows the monitor to be viewed directly or through the viewfinder.
Diopter Control: -3 - +1m
Eye Relief: 18.8mm
Shutter: CCD electronic shutter and mechanical shutter
Shutter Speed Range: 4 - 1/1000 second in programmed-AE and aperture-priority modes.15 - 1/1000 second in shutter-priority and manual exposure modes.2 - 1/1000 second in auto-recording and Digital Subject Programs. Bulb (maximum 30 seconds)
Autofocus System: Rapid AF: a combination of a passive AF sensor with the video AF system
Autofocus Areas: Wide focus area. Spot focus areas with Focus Area Selection
Focus Modes: Single-shot AF, Full-time AF, Manual focus.
Focus Lock: By pressing shutter-release button partway down.
Metering: Multi-segment, Center-weighted, Spot
Multi-Segment Metering: 256 segments
Exposure Modes: Programmed AE, Aperture priority, Shutter priority, Manual
Digital Subject Programs: Portrait, Sports action, Landscape, Sunset, Night portrait. Automatic and manual selection.
Exposure Compensation: +/- 2 EV in 1/3 increments
AE Lock: By pressing shutter-release button partway down
Flash Metering: Pre-flash TTL
Flash Range: Wide: Approximately 0.8 - 20 ft. (0.23 - 6.1 m) from CCD. Telephoto: Approximately 3.9 - 15.7 ft. (1.2 - 4.8 m) from CCD (Camera sensitivity: auto)
Flash Modes: Autoflash, Autoflash with red-eye reduction, Fill flash, Slow-shutter sync. Autoflash not available with aperture priority, shutter priority, and manual exposure modes. Flash cancel by pushing the built-in flash down.
Flash Recycling Time: Approximately 7 seconds
Flash Compensation: +/- 2 EV in 1/3 increments
Flash-Sync Speeds: All shutter speeds
External Flashes: Auto-flash metering with Program/Maxxum Flash 2500 (D), Program/Maxxum 3600HS (D), Program/Maxxum Flash 5600HS (D)
UHS (Ultra High Speed) Continuous Advance: Approximately ten 1280x960 frames in one second
Standard Continuous Advance: Approximately 1.5 frames per second
UHS Continuous Advance (1280 x 960): Fine - 10 frames, Standard - 10 frames, Economy - 10 frames
Standard Continuous Advance (2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480): Fine - 5 frames, 8 frames, 13 frames, 42 frames; Standard - 10 frames, 16 frames, 24 frames, 67 frames; Economy - 19 frames, 30 frames, 42 frames, 94 frames
Progressive Capture: Maximum number of images that can be recorded with the Progressive Capture mode: UHS: 10 frames, Standard: 6 frames
Exposure Bracketing: Three frame bracket in 1.0, 0.5, 0.3 EV increments
Self-Timer: Approximately 10 seconds
Movie: Recording time dependent on memory card capacity, image size, and frame rate. Frame rate: 15 frames per second, 30 frames per second, Fast forward and rewind control. With and without monaural audio with playback volume control. Jogging, Movie frame capture, Night movie (automatic selection or disabled)
White Balance Control: Automatic, Preset (Daylight, Cloudy, Tungsten, Fluorescent, Flash), Custom
Digital Effects Control: Contrast compensation, Sharpness
Contrast Compensation: Three levels (Low, Normal, High)
Sharpness Settings: Three levels (Soft, Normal, Hard)
Color Modes: Natural Color, Vivid Color, Black and White, Sepia
Noise Reduction: User selectable dark noise reduction
Digital Zoom: Maximum 4x in 0.1x increments
Copy Function: To copy single or multiple images to the same or another memory card.
E-mail Copy Function: Creates a compressed 640x480 or 160x120 JPEG image for transmission.
Date Imprinting: Year/month/day (Format can be changed.) Imprinting can be disabled
Key Customization: The function activated by the flash-mode button can be changed.
Image-Quality Modes: Fine, Standard, Economy
Number of Recorded Pixels (Still images): 2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480, 1280 x 960 in UHS continuous-advance mode
Number of recorded pixels (Movie clips): 640 x 480, 320 x 240, 160 x 120
Storage Capacity for Still Images(2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480): Fine - 9 frames, 14 frames, 22 frames, 69 frames; Standard - 17 frames, 27 frames, 39 frames, 100 frames; Economy - 32 frames, 47 frames, 69 frames, 150 frames
Storage Capacity Movie Clips(640x480, 320x240, 160x120): 30 fps - 13 seconds, 21 seconds, 1 minutes 22 seconds; 15 fps - 26 seconds, 41 seconds, 2 minutes 30 seconds
File Formats: JPEG, Motion JPEG (MOV), DCF 1.0-compliant, DPOF-compliant (Supported by printing functions in version 1.1) Exif 2.2
Folder Name Formats: Standard, Date
Printing Output Control: Exif Print, PRINT Image Matching II
Recording Media: SD (Secure Digital) Memory Cards, MultiMediaCards
Computer Interface: Full-speed 12Mbps USB
Direct Print: USB DIRECT-PRINT
AV Output: NTSC, PAL (selected on the camera)
Batteries: Four AA batteries: Alkaline, Ni-MH
Battery Performance (Playback): Approximate continuous playback time: 300 min. with alkaline batteries.
Battery Performance (Recording): Approximate number of recorded images: 250 frames with alkaline batteries, LCD monitor on, Full-size images (2048x1536), Standard image quality, No instant playback, No full-time AF, Flash used with 50% of the frames.
External Power Source: 6V DC with specified AC adapter (sold separately)
Dimensions (WxHxD): 4.31 x 3.05 x 3.15 inches (109.5 x 77.5 x 80mm)
Weight: Approximately 10.8oz. (305g) without batteries or recording media
Operating Temperature: 32-104 degrees F (0-40 degrees C)
Standard Accessories: Neck Strap NS-DG5000, Lens Cap LF-242, Accessory Shoe Cap SC-1000, AV Cable AVC-200, 16MB SD (Secure Digital) Memory Card, USB Cable USB-500, DiMAGE Viewer, ArcSoft VideoImpression CD-ROM, Four AA Alkaline batteries
Optional Accessories: AC Adapter AC-1L, Leather Neck Strap NS-DG1000, External High Power Battery Pack Kit EBP-100, Wide Converter Kit ZCW-100
