Konica Minolta Maxxum 9

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

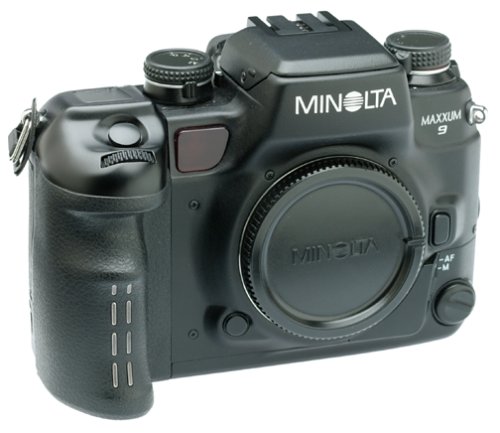

Konica Minolta Maxxum 9 Camera Body

Specifications

Body type: SLR
Mount: Minolta A-type bayonet mount
Film speed range: ISO 25 to 5,000
Flash synchronization: 1/300 second
Film format: 35mm
Midroll change: Yes
Midroll rewind: Manually
Auto rewind: Yes
Built-in motor drive: Yes
Shutter speed range: 1/12,000 second
Autofocus system: Yes
Manual focus: Yes
Shutter priority mode: Yes
Aperture priority mode: Yes
Spot metering mode: Yes
Multisegment metering: 14-segment honeycomb pattern and 4-segment flash metering
Center-weighted metering: Yes
Exposure compensation: Yes
Flash exposure compensation: +/- 3 EV in 1/2-EV increments
Auto exposure lock: Yes
Auto exposure bracketing: Yes
Manual exposure mode: Yes
Programmed exposure modes: Yes
Multiple exposure: 2 or more exposures
Depth-of-field preview: Yes
PC cord socket: Screw type
Built-in flash: Yes
Red-eye reduction: Yes
Fill-flash (forced flash): Yes
Flash-off mode: Yes
Burst mode or continuous shooting: 5.5 frames per second
Self-timer: 10-second self-timer
Remote included: Yes
Splashproof: Yes
Waterproof: No
Other special features: Dust- and moisture-resistant construction, auto threading, auto advance to first frame, delayed-shutter mirror lockup
Battery requirements: 2 3-volt CR123A lithium-ion batteries
Dimensions (WxHxD): 6.1x 4.4 x 3 inches
