Panasonic HDC-SDT705K Panasonic HDC-SDT705K

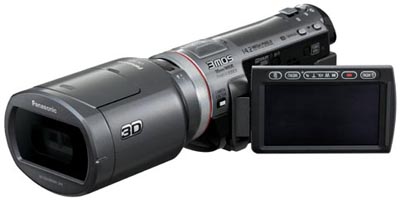

Simply attach the 3D conversion lens to the HDC-SDT750 camcorder and you can record 3D video.

Features

  • World's first 3D Shooting Camcorder
  • Full-HD 1080/60p Progressive Movie Recording
  • Advanced 3MOS System
  • 3MOS Sensor splits the light information captured by the lens into the three primary colors and processes each color with its own individual sensor.
  • Intelligent Auto with Hybrid O.I.S
  • Black
  • Specifications

    Recording Media SD/SDHC/SDXC Memory Card
    Recording Format 1080 / 60p : MPEG-4 AVC/H.264 (original format)
    HA / HG / HX / HE : MPEG-4 AVC/H.264 (AVCHD standard compliant) / JPEG
    Image Sensor 1/4.1" MOS x 3
    Total Pixels 9.15 megapixels (3.05 megapixels x 3)
    F Value F1.5(WIDE)/2.8(TELE)
    Optical Zoom 12x
    Intelligent Zoom 18x
    Digital Zoom 30x / 700x
    Focal Length 3.45-41.4mm
    Filter Diameter 46mm
    35mm Film Camera Equivalent 35.0-420mm (16:9) [Motion Image]
    35.7-428mm (3:2), 35.0-420mm (16:9), 38.8-466mm (4:3) [Still Image]
    Lens Type Leica Dicomar Lens
    Image Stabilizer HYBRID O.I.S. [Optical Image Stabilization]
    Still Picture Recording:4:3 12.2 megapixels (4032 x 3024)
    7.7 megapixels (3200 x 2400)
    4.9 megapixels (2560 x 1920)
    0.3 megapixels (640 x 480)
    Still Picture Recording:3:2 14.2 megapixels (4608 x 3072)
    8.6 megapixels (3600 x 2400)
    5.5 megapixels (2880 x 1920)
    Still Picture Recording:16:9 13.3 megapixels (4864x2736)
    8.3 megapixels (3840 x 2160)
    5.3 megapixels (3072 x 1728)
    Shutter Speed: Motion Image [60i / 60p] Auto Slow Shutter ON : 1/30-1/8000 , video flash: 1/30-1/500 OFF : 1/60-1/8000, video flash: 1/60-1/500
    [24P] Auto Slow Shutter ON : 1/24-1/8000 , video flash: 1/24-1/500 OFF : 1/48-1/8000, video flash: 1/48-1/500
    Shutter Speed: Still Image 1/2-1/2000, video flash: 1/2-1/500
    Minimum Illumination 1.6 lx (1/30 Low Light scene mode)
    1 lx (Color Night Rec)
    Standard Illumination 1400 lx
    Focus Auto/Manual
    White Balance Auto/Indoor1/Indoor2/Sunny/Cloudy/White Set
    Iris Auto/Manual
    Backlight Compensation Yes
    Electronic Viewfinder Yes
    LCD Monitor 3.0" Wide LCD (230,400 dots)
    Simultaneous Recording 13.3 megapixels (4864 x 2736)
    8.3 megapixels (3840 x 2160)
    2.1 megapixels (1920x1080) [16:9]
    Creating Still Picture from Motion Picture 2.1 megapixels (1920 x 1080) [16:9]
    Microphone 5.1ch Surround, Zoom and Focus Microphone
    Speaker Dynamic
    On-Screen Display Language English / French / Spanish
    Flash Yes
    Media Remaining Indication Yes
    Signal System 1080 / 60p, 1080 / 60i
    Recording Mode 1080/60p (28Mbps/VBR),(1920x1080)
    HA(17Mbps/VBR),(1920x1080)
    HG(13Mbps/VBR),(1920x1080)
    HX(9Mbps/VBR),(1920x1080)
    HE(5Mbps/VBR),(1920x1080)
    Playback Mode 1080 / 60p (28Mbps / VBR) , (1920 x 1080)
    HA (17Mbps / VBR) , (1920 x 1080)
    HG (13Mbps / VBR) , (1920 x 1080)
    HX (9Mbps / VBR) , (1920 x 1080)
    HE (5Mbps / VBR) , (1920 x 1080)
    Image Sensor (Effective)-Motion Image 7.59 megapixels (2.53 megapixels x 3) [16:9]
    Image Sensor (Effective)-Still Image 7.89 megapixels (2.63 megapixels x 3) [3:2]
    7.59 megapixels (2.53 megapixels x 3) [16:9]
    6.96 megapixels (2.32 megapixels x 3) [4:3]
    Compression (Recording Format) 1080 / 60p : MPEG-4 AVC/H.264 (original format)
    HA / HG / HX / HE : MPEG-4 AVC/H.264 (AVCHD standard compliant)
    Audio Compression Dolby Digital (5.1ch / 2ch)
    DPOF Max. 999 images
    HDMI Yes - mini
    USB 2.0 Hi-Speed
    Microphone Stereo Mini
    Headphone Stereo Mini
    Accessory Shoe Yes
    AC Adaptor Yes
    USB Cable Yes
    Stylus Pen Yes
    IR Remote Yes
    Included Software HD Writer AE 2.6T
    Rechargeable Battery Pack min. 1250 mAh / Lithium-Ion
    Power Supply DC7.2V / 9.3V
    Power Consumption - Recording Max. 6.0W
    AV Multi Yes
    AV Multi Cable Yes
    Weight (w/o Battery) approx. 375g ( 0.83lb)
    Dimension (W x H x D) 66 x 69 x 138 mm, ( 2.59 x 2.71 x 5.43 inch)
    AC Cable Yes
    DC Cable Yes
    Lens hood Yes
    Shoe adaptor Yes
    HDMI cable (mini) Yes
    3D Conversion Lens VW-CLT1
    Dimension (W x H x D) with Lens 78 x 59 x 97 mm, ( 3.07 x 2.32 x 3.82 inch)
    F Value (with 3D Conversion Lens) F3.2
    Minimum Illumination (with 3D Conversion Lens) 28 lx (1/30)
    Accessories (with 3D Conversion Lens) Lens Front Cap, Lens Rear Cap, Lens Pouch
