Panasonic HDC-TM15K

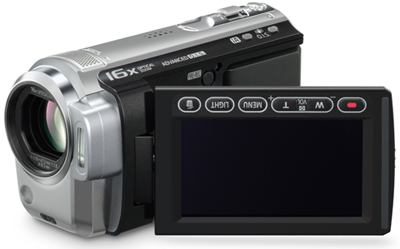

Panasonic HDC-TM15K HD Camera

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

Features

  • 16GB Full-HD Camcorder
  • Built-in Memory & SD Card Twin Memory
  • 16x Optical Zoom with O.I.S.
  • iA Mode with AF Tracking & Touch Screen
  • Black
  •

    Specifications

    MEDIA
    Recording Media Built-in Memory (16GB), SD/SDHC Memory Card
    Recording Format MPEG4-AVC/H.264 (AVCHD standard compliant)
    JPEG (Still Image)
    LENS
    Image Sensor (Total) 1/6" MOS
    Image Sensor (Effective) 1.17 megapixels [16:9] [Motion Image]
    1.17 megapixels [16:9] [Still Image]
    Total Pixels 1.47 megapixels
    F Value F1.8(WIDE)
    2.8(TELE)
    Optical Zoom 16x
    Digital Zoom 40x-1000x
    Focal Length 2.95-47.2mm
    Filter Diameter 30.5mm
    35mm Film Camera Equivalent 44.1-706mm [16:9]
    Lens Type Panasonic
    CAMERA
    Image Stabilizer Advanced O.I.S. with Active Mode
    Still Picture Recording:16:9 2.1 Megapixel (1920 x 1080)
    Shutter Speed: Motion Image 60i Auto Slow Shutter ON: 1/30-1/8000, OFF: 1/60-1/8000, 24P Auto Slow Shutter ON: 1/24-1/8000, OFF: 1/48-1/8000
    Shutter Speed: Still Image 1/2-1/2000, video flash: 1/2-1/500
    Minimum Illumination 9 Lux (1/30 Low Light Mode)
    1 Lux (Magic Pix)
    Standard Illumination 1400 lx
    Focus Auto/Manual
    White Balance Auto/Indoor1/Indoor2/Sunny/Cloudy/White Set
    Iris Auto/Manual
    LCD Monitor 2.7" Wide LCD (230,400 pixels)
    MagicPix Images Yes
    Simultaneous Motion Video & Still Picture Recording Yes; 2.1 M (1920 x 1080) [16:9]
    Creating Still Picture from Motion Picture 2.1 M (1920 x 1080) [16:9]
    Microphone 2-ch Stereo, Zoom Microphone
    Speaker Dynamic type
    On-Screen Display Language English, French, Spanish
    LED Video Light Yes
    Flash Yes
    Media Remaining Indication Yes
    RECORDING & PLAYBACK
    Signal System 1080 / 60i
    Video Recording Format MPEG4-AVC/H.264 (AVCHD standard compliant)
    Recording Mode HA (17Mbps/VBR) (1920 x 1080)
    HG (13Mbps/VBR) (1920 x 1080)
    HX (9Mbps/VBR) 1920 x 1080)
    HE (6Mbps/VBR) (1440 x 1080)
    Playback Mode HA (17Mbps/VBR) (1920 x 1080)
    HG (13Mbps/VBR) (1920 x 1080)
    HX (9Mbps/VBR) 1920 x 1080)
    HE (6Mbps/VBR) (1440 x 1080)
    Audio Recording System Dolby Digital (2ch)
    Still Picture JPEG; 2.1 M (1920 x 1080) [16:9]
    SD CARD FEATURES
    Built-in SD Slot Yes
    PictBridge Compatible Yes
    DPOF Max. 999 images
    JACKS
    Video Component Yes
    Audio Out Yes
    AV Out Yes
    HDMI Yes (mini)
    USB 2.0 Hi-Speed
    INCLUDED ACCESSORIES
    AC Adaptor Yes
    Video Component Cable Yes
    USB Cable Yes
    AV Cable Yes
    Stylus Pen Yes
    Included Software HD Writer AE 1.5
    Rechargeable Battery Pack min. 725 mAh/Lithium-Ion
    GENERAL
    Power Supply DC 7.2/9.3 V
    Power Consumption 5.6W
    AC Cable Yes
    DC Cable Yes
    Dimensions (H x W x D) 2.48" x 1.87" x 4.51"
    Weight 0.5 lbs
