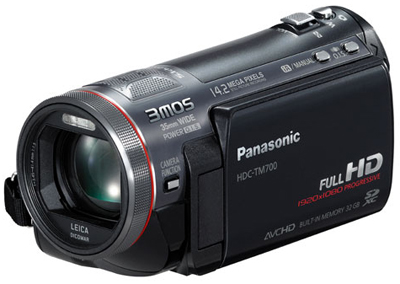

Panasonic HDC-TM700K HD Camera

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual
Panasonic HDC-TM700K

Features

  • 32GB Full HD Camcorder
  • Built-in Memory & SD Card Twin Memory
  • Pro Control System
  • 1000-Line Motion/11MP Still Picture Quality
  • 3MOS System
  • Black
  •







    Specifications

    MEDIA
    Recording Media Built-in memory (32GB), SD/SDHC/SDXC Memory Card
    Recording Format 1080 / 60p : MPEG-4 AVC/H.264 (original format)
    HA / HG / HX / HE : MPEG-4 AVC/H.264 (AVCHD standard compliant) / JPEG
    LENS
    Image Sensor (Total) 1/4.1" MOS x 3
    Image Sensor (Effective) Motion Image: 7.59 megapixels (2.53 megapixels x 3)[16:9]
    Still Image: 7.89 megapixels (2.63 megapixels x 3 ) [3:2]
    7.59 megapixels (2.53 megapixels x 3) [16:9]
    6.96 megapixels (2.32 megapixels x 3 ) [4:3]
    Total Pixels 9.15 megapixels (3.05 megapixels x 3)
    F Value F1.5(WIDE)
    2.8(TELE)
    Optical Zoom 12x
    Intelligent Zoom 18x
    Digital Zoom 30x - 700x
    Focal Length 3.45-41.4mm
    Filter Diameter 46mm
    35mm Film Camera Equivalent 35.0-420mm (16:9) [Motion Image]
    35.7-428mm (3:2), 35.0-420mm (16:9), 38.8-466mm (4:3) [Still Image]
    Lens Type Leica Dicomar Lens
    CAMERA
    Image Stabilizer Advanced O.I.S. (Optical Image Stabilization)
    Still Picture Recording 4:3 12.2 megapixels (4032 x 3024)
    7.7 megapixels (3200 x 2400)
    4.9 megapixels (2560 x 1920)
    0.3 megapixels (640 x 480) [4:3]
    Still Picture Recording:3:2 14.2 megapixels (4608 x 3072)
    8.6 megapixels (3600 x 2400)
    5.5 megapixels (2880 x 1920) [3:2]
    Still Picture Recording:16:9 13.3 megapixels (4864x2736)
    8.3 megapixels (3840 x 2160)
    5.3 megapixels (3072 x 1728) [16:9]
    Shutter Speed: Motion Image

    A[60i / 60p] Auto Slow Shutter
    ON : 1/30-1/8000 , video flash: 1/30-1/500
    OFF : 1/60-1/8000, video flash: 1/60-1/500

    [24P] Auto Slow Shutter
    ON : 1/24-1/8000 , video flash: 1/24-1/500
    OFF : 1/48-1/8000, video flash: 1/48-1/500

    Shutter Speed: Still Image 1/2-1/2000, video flash: 1/2-1/500
    Minimum Illumination 1.6 lx (1/25 Low Light scene mode)
    1 lx (Color Night View)
    Focus Auto/Manual
    White Balance Auto/Indoor1/Indoor2/Sunny/Cloudy/White Set
    Iris Auto/Manual
    Backlight Compensation Yes
    Electronic Viewfinder Yes
    LCD Monitor 3.0" Wide LCD (230,400 dots)
    Simultaneous Recording 13.3 megapixels (4864 x 2736)
    8.3 megapixels (3840 x 2160)
    2.1 megapixels (1920x1080) [16:9]
    Creating Still Picture from Motion Picture 2.1 M (1920 x 1080) [16:9]
    Microphone 5.1ch Surround, Zoom and Focus Microphone
    Speaker Dynamic type
    On-Screen Display Language English, French, Spanish
    Flash Yes
    Media Remaining Indication Yes
    RECORDING & PLAYBACK
    Signal System 1080 / 60p, 1080 / 60i
    Video Recording Format 1080 / 60p : MPEG-4 AVC/H.264 (original format)
    HA / HG / HX / HE : MPEG-4 AVC/H.264
    (AVCHD standard compliant)
    Recording Mode 1080 / 60p (28Mbps / VBR) , (1920 x 1080)
    HA (17Mbps / VBR) , (1920 x 1080)
    HG (13Mbps / VBR) , (1920 x 1080)
    HX (9Mbps / VBR) , (1920 x 1080)
    HE (5Mbps / VBR) , (1920 x 1080)
    Playback Mode 1080 / 60p (28Mbps / VBR) , (1920 x 1080)
    HA (17Mbps / VBR) , (1920 x 1080)
    HG (13Mbps / VBR) , (1920 x 1080)
    HX (9Mbps / VBR) , (1920 x 1080)
    HE (5Mbps / VBR) , (1920 x 1080)
    Audio Recording System Dolby Digital (5.1ch)
    SD CARD FEATURES
    DPOF Max. 999 images
    JACKS
    HDMI Yes (mini)
    USB 2.0 Hi-Speed
    Microphone Stereo mini
    Headphone Stereo mini
    Accessory Shoe Cold
    INCLUDED ACCESSORIES
    AC Adaptor Yes
    USB Cable Yes
    Stylus Pen Yes
    IR Remote Yes
    Included Software HD Writer AE 2.1
    Rechargeable Battery Pack min. 1250 mAh / Lithium-Ion
    GENERAL
    Power Supply DC 7.2/9.3 V
    Power Consumption Max. 6.3W (Recording)
    AV Multi Yes
    AV Multi Cable Yes
    AC Cable Yes
    DC Cable Yes
    Lens hood Yes
    Show Adapter Yes
    Dimensions (H x W x D) 2.55" x 2.71" x 5.43"
    Weight Approx. 1.01 lbs
    Weight (w/o Battery) approx. 450g/.99lb
