Panasonic PVL652

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

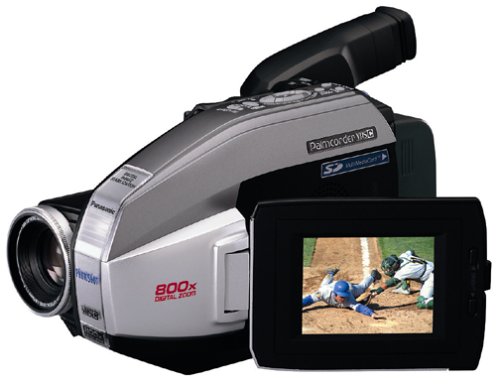

Panasonic PV-L652

Specifications

System:NTSC
Format:VHS-C
CCD:1/4" 270,000 Pixels
Audio:Mono
Zoom:20x Optical, 800x Digital
Lens:3.6-72mm /1.6
Image Stabilizer:Yes, Digital Electronic Image Stabilizer
Lux:0.8 Lux
Viewfinder:0.55" Color (with 114,000 Pixels)
LCD Monitor:3.0"
Manual Controls:Focus, Preset Shutter Speed 1/60 - 1/10,000
Date and Time:Yes, with Time Zone Select
Special Effects:Still, Strobe, Wide Mode, 5 Mode Digital Filter, Sepia, Yellow, Red, Blue, Green, Wipes and Picture In Picture in Digital Still Mode
Digital Camera Mode:Yes, (Normal Mode
Fader:Auto Fader B/W, Color Digital Fade 7 Effect in 8 Colors
Built-In Light:Yes
Power Consumption:19w/110-240v, 50/60Hz
Dimensions (WHD):4.3 x 4.8 x 7.5 inches
Weight:2.16 pounds (0.98 kg)
Specialties:Motion Sensor, Self Demo Mode, Preset Date/Time with Time Zone Select, Auto Daylight Saving Time, Time Lapse Interval Record - #1 records 5 seconds each minute or #2 records 10 seconds each minute, 60 Still Images at 640 x 480 (VGA) JPEG File Format and 240 at 320 x 240
