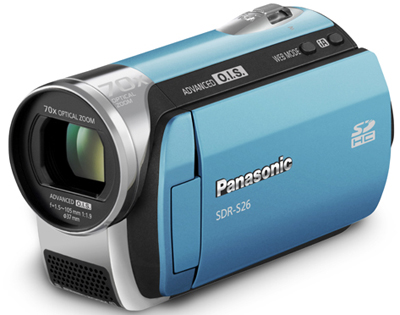

Panasonic SDR-S26A

Panasonic SDR-S26A

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

Features

Specifications

MEDIA
Recording media SD/SDHC Memory Card
Recording Format MPEG2 (Motion Image)
JPEG (Still Image)
LENS
Image Sensor (Total) 1/8" CCD
Image Sensor (Effective) 0.38 megapixels [16:9], 0.29 megapixels [4:3] (Motion Image)
0.38 megapixels [16:9],0.29 megapixels [4:3] (Still Image)
Total Pixels 0.8 megapixels
F Value F1.9(Wide)
5.7(Tele)
Optical Zoom 70x
Digital Zoom Digital Zoom: 70x-100x
Super Digital Zoom: 70x-3500x
Focal Length 1.5-105mm
Filter Diameter 37mm
35mm Film Camera Equivalent 45.6-3194mm [4:3], 37.3-2610mm [16:9] (Motion Image)
45.4-3180mm[4:3], 37.0-2592mm [16:9] (Still Image)
Lens Type Panasonic
CAMERA
Image Stabilizer Advanced O.I.S. (Optical Image Stabilization)
Still Picture Recording 4:3
Still Picture Recording 16:9
0.3 megapixels (640 x 480)
0.2 megapixels (640 x 360)
Shutter Speed (Motion Image) 1/30-1/8000
Shutter Speed (Still Image) 1/30-1/500
Minimum Illumination 6 Lux (1/30 Low Light Mode), 2 Lux (Magic Pix)
Focus Auto/Manual
White Balance Auto/Indoor/Outdoor/White Set
Iris Auto/Manual
LCD Monitor 2.7" Wide (123,200 Dots)
MagicPix Images Yes
Microphone Stereo mic., Zoom mic.
Speaker Dynamic type
On-Screen Display Language English, French, Spanish
RECORDING & PLAYBACK
Video Recording Format MPEG 2
Recording Mode XP [10Mbps/VBR], [704 x 480]
SP [5Mbps/VBR], [704 x 480]
LP [2.5Mbps/VBR], [704 x 480]
Playback Mode XP [10Mbps/VBR], [704 x 480]
SP [5Mbps/VBR], [704 x 480]
LP [2.5Mbps/VBR], [704 x 480]
Audio Recording System Dolby Digital [2ch], MPEG1 Audio Layer 2
SD CARD FEATURES
Built-in SD Slot Yes
DPOF Max. 999 images
PictBridge Compatible Yes
JACKS
Audio Output Yes
USB 2.0 Hi-Speed
AV Out
INCLUDED ACCESSORIES
AC Adaptor Yes
AV Cable Yes
USB Cable Yes
Software VideoCam Suite 2.0
Rechargeable Battery Pack min. 940 mAh/Lithium-Ion
GENERAL
Power Supply DC3.6V/5.0V
Power Consumption 3.0W
Dimensions (H x W x D) 2.56'' x 2.21'' x 4.21''
Weight (lbs) Approx. 0.50 lbs
AC Cable Yes
DC Cable Yes
