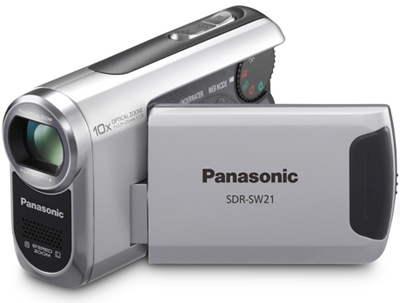

Panasonic SDR-SW21S
Features:
Specifications
MEDIA |
|
| Recording media | SD/SDHC Memory Card |
| Recording Format | MPEG2, H.264/AVC (Motion Image) JPEG (Still Image) |
| LENS | |
| Image Sensor (Total) | 1/6" CCD |
| Image Sensor (Effective) | Motion Image 4:3 = 0.34 megapixels 16:9 = 0.30 megapixels Still Image 4:3 = 0.35 megapixels |
| Total Pixels | 0.68 megapixels |
| F Value | F1.8 (Wide) F2.4 (Tele) |
| Optical Zoom | 10x |
| Digital Zoom | 10x-25x |
| Super Digital Zoom | 10x - 700x |
| Focal Length | 2.3 - 23 mm |
| 35mm Film Camera Equivalent | Motion Image 4:3 = 43.9-439 mm 16:9 = 43.9-439 mm Still Picture 4:3 = 43.7-437 mm |
| Lens Type | Panasonic |
| CAMERA | |
| Image Stabilizer | Electronic Image Stabilizer (EIS) |
| Still Picture Recording 4:3 |
0.3 megapixels (640 x 480) |
| Shutter Speed (Motion Image) | 1/30-1/8000 |
| Shutter Speed (Still Image) | 1/30-1/500 |
| Minimum Illumination | 6 Lux (1/30 Low Light Mode) 2 Lux (Magic Pix) |
| Focus | Auto/Manual |
| White Balance | Auto/Indoor/Outdoor/White Set/Underwater |
| Iris | Auto/Manual |
| LCD Monitor | 2.7" Wide (123,200 Dots) |
| MagicPix Images | Yes |
| Microphone | Stereo mic., Zoom mic. |
| Speaker | Dynamic type |
| On-Screen Display Language | English, French, Spanish |
| RECORDING & PLAYBACK | |
| Video Recording Format | MPEG2 |
| Recording Mode | XP [10Mbps/VBR], [704 x 480] SP [5Mbps/VBR], [704 x 480] LP [2.5Mbps/VBR], [704 x 480] Playback Mode XP [10Mbps/VBR], [704 x 480] SP [5Mbps/VBR], [704 x 480] LP [2.5Mbps/VBR], [704 x 480] |
| Audio Recording System | Dolby Digital [2ch], MPEG1 Audio Layer 2 |
| SD CARD FEATURES | |
| Built-in SD Slot | Yes |
| PictBridge Compatible | Yes |
| DPOF | Max. 999 images |
| JACKS | |
| Audio Output | Yes |
| USB | 2.0 Hi-Speed |
| AV | Out |
| INCLUDED ACCESSORIES | |
| AC Adaptor | Yes |
| AV Cable | Yes |
| USB Cable | Yes |
| Software | VideoCam Suite 2.0 |
| Rechargeable Battery Pack | min. 940 mAh/Lithium-Ion |
| GENERAL | |
| Power Supply | DC3.6V/5.0V |
| Power Consumption | 2.9W |
| Dimensions | (H x W x D) 2.68'' x 1.38'' x 4.61'' |
| Weight (lbs) | 0.52 lbs |
| AC Cable | Yes |
| DC Cable | Yes |
User Manual
To locate an operating manual see our database of Panasonic user manuals.
