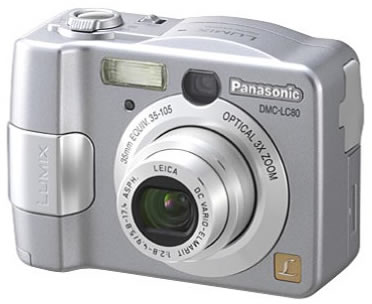

Panasonic Lumix DMC-LC80

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

Features

DMC-LC80

Specifications

Lens:Leica DC Vario-Elmarit; 7 elements in 6 groups (3 aspherical lenses/3 aspherical surfaces)
Optical image stabilizer:No
Optical zoom:3x
Digital zoom:3x (up to 9x total zoom when combined with 3x optical zoom)
Effective pixels:5.0 megapixels
CCD (image sensor):1/2.5 inches, 5.36 total megapixel CCD
Image processor:Venus Engine LSI
Recording image size (pixels):2560 x 1920, 2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480, 1920 x 1080
Motion image (QuickTime motion JPEG):30 or 10 frames per second (320 x 240 pixels)
F-stop:f2.8 to f4.9
Aperture:2 steps (wide
Focal length:5.8-17.4mm (35mm equivalent
Focus:Autofocus System, Normal/Macro (Dial), Spot AF On/Off (Spot Mode), AF Trigger (Shutter/Focus Button)
ISO Sensitivity:Auto, 80, 100, 200, 400
White balance:Auto/Daylight/Cloudy/Halogen/White Set
Exposure:Program AE
Exposure compensation:+/- 2 EV (exposure value) in 1/3 EV steps
Auto bracketing (AE):+1/3 EV-1EV Step, 3 frames
Light metering:Intelligent Multiple, Spot (Spot Mode)
Scene modes:Simple, Normal Picture, Economy, Macro, Portrait, Landscape, Night Portrait, Moving Image, Playback
Shutter speed:8 seconds to 1/2,000 second
Self timer:10 seconds, 2 seconds
Picture adjustment:Natural, Standard, Vivid
Color effect mode:Cool, Warm, Black & White
Image quality:Fine/Standard
Mega burst shooting mode:Standard mode
Still image recording with audio:5 seconds
Audio dubbing:Maximum of 10 seconds
Built-in flash mode:Auto, Auto/Red-eye Reduction, Slow Sync./Red-eye Reduction, Forced On/Off
External flash:No
Real-time histograms:Yes
LCD monitor:1.5-inch diagonal Polycrystalline TFT LCD display (114K pixels)
Viewfinder:Optical viewfinder
Recording media:SD Memory Card, Multimedia Card
Microphone:Yes
Speaker:No
Interface:DC input, AV output (NTSC/PAL), USB
Power supply:2 AA alkaline batteries (included), Ni-MH rechargeable battery (optional), AC adapter (input
Battery life:Up to 160 pictures with LCD on (CIPA standard); up to 400 with LCD off (other conditions same as CIPA standard)
Conversion lens compatibility:No
Auto review:1 second to 3 seconds, zoom
Review:1x/4x/8x
Included software:SD viewer for DSC, Ulead Photo Explorer, USB driver
Exposure button:No
AF metering:1 point
AF assist lamp:No
Composition guide lines:Yes
Flip animation:Yes
Unlimited consecutive shooting:No
Playback mode:9-Thumbnail Display, Zoomed Playback (16x maximum), Image Rotation, Slide Show Resizing, Trimming, Protection
Direct print:PictBridge, USB Direct-Print
Backlight compensation:Yes (at simple mode)
Dimensions (H x W x D):2.52 x 3.44 x 1.39 inches
Weight:0.36 pounds
