Panasonic DVD-F86 (K/S)

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

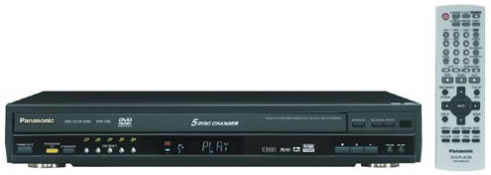

Panasonic DVD-F86

Specifications

Disc capacity:5
Region playback:Compatible only with non-region-coded (code-free) discs and with discs coded for Region 1
Progressive scan:Yes
Switchable 480p/480i:Yes
3:2 pulldown:No
Playback formats:DVD-Video (NTSC), DVD-Audio (stereo only), DVD-R, DVD-RAM, red book CD, CD-R, CD-RW, MP3 CD, WMA CD
Aspect ratio control:Yes
Dialog enhancer:Yes
Front-panel operation:No
Quick play:No
Multi-angle viewing:Yes (with applicable discs)
Black-level adjustment:Yes
Horizontal resolution:More than 500 lines
HDCD decoding:Yes
Video DAC:54 MHz/10-bit
Audio DAC:192 kHz/24-bit
Video signal-to-noise ratio:More than 65 dB
Audio signal-to-noise ratio:115 dB
Dynamic range (audio):DVD-Video: 100 dB; CD: 98 dB
Chapter preview:Yes
Custom bookmarks:No
Frame advance:Yes
Still/freeze frame:Yes
Speed scan:100x
Direct Navigator:Yes
Playlist playback:Yes
Progress indicator:Yes
Audio/JPEG navigation menu:Yes
HighMAT compatible:Yes (Level 2)
Still Picture Display (I/P/B):Yes
Picture controls:Brightness, Color, Contrast, Gamma Correction, Sharpness
Picture enhancements:Gamma correction, 4:4:4 signal processing, MPEG digital noise reduction (mosquito/block/3D), depth enhancer, 4:3 shrink function with letterbox zoom and shift, picture mode selection
Audio enhancements:Multi Re-master processing, audio only function (video circuit off), slow and fast audio playback, dynamic range compression (for late-night movie viewing)
Monitor select:Yes
Bass Plus:No
Jog/shuttle dial on unit:No
Forward/reverse play:Yes
Karaoke:No
Multilingual support:Yes (English, Spanish, French)
Remote control:Yes
Parental controls:Yes
Picture zoom:Yes (variable and auto)
Changer type:Carousel
Play exchange:Yes
Sequential CD playback:Yes
Recording capability:No
Resume play:Yes (up to 5 discs)
Sleep timer:Yes
Reverse-frame step:Yes
Slow motion:Yes
Quick Guide setup:Yes
Instant replay:Yes (Quick Replay)
Audio outputs:1 stereo analog (left/right), 1 monaural RCA subwoofer output, 1 digital-audio (coaxial)
Headphone jack:No
Video outputs:3 (composite-, component-, and S-video)
Surround-sound output:Dolby Digital, Dolby Pro Logic II, and DTS 5.1-channel passthrough
Simulated surround sound:Yes (Advanced Surround, V.S.S.--also works for headphone listening)
THX-certified:No
Energy Star-compliant:Yes
Power input:AC 120V, 60 Hz
Power consumption:10 watts
Width:16.9 inches
Height:2.3 inches
Depth:15.6 inches
Weight:11.32 pounds
In the box:DVD player, remote control, remote batteries, user's manual, stereo analog audio interconnect/composite-video cable
