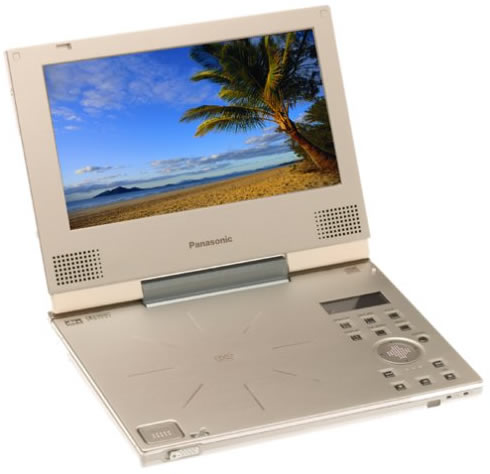

Panasonic DVD-LV75

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Panasonic DVD-LV75

Specifications

Digital-to-analog audio converter:96 kHz/24-bit
DVD dynamic range:97 dB
Digital-to-analog video converter:10-bit
Video signal-to-noise ratio:60 dB
Aspect ratios:4:3 pan and scan, 4:3 letterbox, 16:9
Horizontal image resolution:500 lines
Pixels:337,000
Diagonal viewable screen size:7 inches
CD-R:Yes
CD-RW:No
DVD-R:Yes
DVD-RW:No
Video CD:Yes
Dolby Digital surround output:Yes
Dolby Digital surround decoding:Yes
DTS (Digital Theater Systems) surround output:Yes
DTS (Digital Theater Systems) surround decoding:Yes
Simulated surround processing:Yes
RS-232 digital interface:No
Composite-video inputs:Miniplug
Analog input jacks:Miniplug
Analog-audio stereo inputs:Yes
Headphone jack:Yes
Optical digital-audio output:Yes
Analog-audio stereo outputs:Yes
Composite-video outputs:Yes
S-video outputs:Yes
In the box:Panasonic DVD-LV75 Portable DVD-Video Player, remote control, rechargeable battery pack, mini audio/video cables, AC adapter, user's manual
Repeat play:A-B
Headphone volume control:Yes
Detachable AC cord:Yes
DVD programming:32 tracks
Compression on/off mode:Yes
Disc advance speeds:5
Progressive-scan video:No
Special effects:Frame-by-frame viewing; karaoke compatible; onscreen icons for title and track; displays chapter, time, audio format, subtitles, camera angles, PCB off; onscreen messages; dialogue enhancer; marker; VSS mode; speaker delay adjustments for use with external 5.1 channel systems; output test signal for use with external 5.1 channel systems
Zoom:No
Slow-motion speeds:5
Multilanguage display:English, Spanish, French
Screen-saving backlight:No
Speakers:2
Video adjustments:Yes
Remote control type:35-key slim remote
Volume control:Dial type
Hold switch:Yes
Parental lock:Yes
Low-battery indicator:Yes
Screen type:LCD
Remote control:Yes
AC/DC adapter:Yes
Battery type:Rechargeable lithium
Time rating:4 hours
Width (battery pack):5.5 inches
Height (battery pack):0.97 inches
Width:5.5 inches
Height:7.28 inches
Depth:1 inches
Weight:1.4 pounds
