Home : Equipment : Panasonic : DVD : DVDRP62

Panasonic DVD-RP62 (K/S)

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

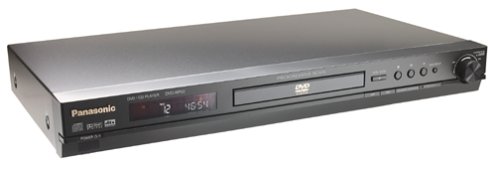

Panasonic DVD-RP62K

Specifications

In the box:DVD player, remote control, user's manual, stereo analog audio interconnect/composite-video cable
Disc capacity:1
Progressive scan:Yes
Playback formats:DVD-Video (NTSC), VCD, DVD-R, red book CD, CD-R, CD-RW, MP3 CD, WMA CD
Aspect ratio control:Yes
Dialog enhancer:Yes
Front-panel operation:Yes
Multi-angle viewing:Yes (with applicable discs)
Black-level adjustment:Yes
Chapter preview:Yes
Frame advance:Yes
Still/freeze frame:Yes
Jog/shuttle dial on unit:Yes
Multilingual support:Yes (English, Spanish, French)
Parental controls:Yes
Picture zoom:Yes
Random play:Yes
Recording capability:No
Repeat play:Yes
Resume play:Yes
Reverse-frame step:Yes
Slow motion:Yes
Picture control:Brightness, Color, Contrast
Audio outputs:1 stereo analog (left/right), 1 optical digital-audio, 1 dedicated analog RCA subwoofer output
Headphone jack:No
Video outputs:3 (composite-, component-, and S-video; component output is switchable 480P/480I)
Video signal-to-noise ratio:65 dB
Audio signal-to-noise ratio:115 dB
Dynamic range:DVD-Video: 102 dB; CD: 98 dB
Surround-sound output:Dolby Digital and DTS 5.1-channel passthrough
Simulated surround sound:Yes (Advanced Surround VSS)
Dynamic Range Compression:Yes
THX-certified:No
Twin-laser pickup:Yes
Color:Black
Progress Indicator:Yes
Quick Replay:Yes
Position Memory:Up to 5 discs
One Touch Cinema Memory:Yes
Picture Quality Improvement Functions:Input TBC, 3D Y/C Separation, 3D Noise Reduction, Block Noise Reduction, Mosquito Noise Reduction
DV Input Terminal:No
Sleep timer:Yes
Quick Guide Setup:Yes
Video DAC:54MHz/10-bit
Audio DAC:192 kHz/24-bit
Audio Navigation Menu:Yes
Audio tone controls:Yes (Bass Plus)
Cinema made:Yes
Power source:AC 120V, 60Hz
Power consumption:14 watts
Horizontal resolution:More than 500 lines
Remote control:Universal
Hi Speed Smooth Scan:5 Speed up to x200
Picture mode selection:Yes
Onscreen menu icons:Yes
Length:9.8 inches
Width:16.9 inches
Height:2.375 inches
Weight:5.3 pounds
