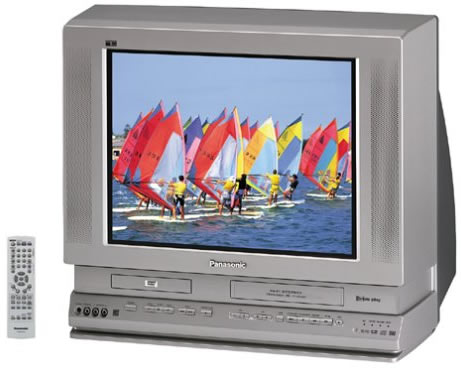

Panasonic PV-DF2004

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Panasonic PV-DF2004

Specifications

Screen size:20 inches
TV type:CRT with PureFlat picture tube
HDTV capable:No
Aspect ratio:4:3
Speaker wattage per channel:3 (at 1 kHz, 8 ohms, with 10 percent THD)
Number of speakers:2
Comb filter:2-line digital
Includes DVD player:Yes
Includes VCR:Yes
Region playback (DVD):Compatible only with discs coded for Region 1 and for All Regions
Progressive scan (DVD):No
Compatible formats:DVD-Video (NTSC), DVD-R, DVD-RAM, CD, CD-R/RW, VHS videocassette
Picture zoom:Yes
Resume play (DVD):Yes
Aspect-ratio control (DVD):Yes
Track programming (DVD):Yes
Heads (VCR):4
Stereo (VCR):Yes
Quasi-S-VHS:Yes (plays S-VHS tapes at standard VHS quality)
Auto clock set:Yes (with 24-hour backup; requires reception of local PBS station with Extended Data Service)
Auto setup:Yes
High-speed rewind/fast-forward (VCR):Yes
Auto power on:Yes
NTSC tuner:Yes (181 channels)
MTS/SAP reception:Yes
Slow motion:Yes
Multilingual onscreen display:Yes (English, Spanish, French)
Multilingual menu:Yes (English, Spanish, French)
Remote control:Yes (standard)
Ready to Play:Yes
Front AV inputs:Yes
Signal type:NTSC
Auto channel setup:Yes
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):No
SAP:Yes
Sleep timer:Yes (and TV/video/DVD on-timer)
Surround sound:Simulated
VGA/SVGA input:No
Headphone jack:Yes (.125-inch)
Color temperature control:No
Front AV jacks:Yes
Power supply:AC 120V, 60 Hz
In the box:TV combo, remote control, remote batteries, a user's manual, and warranty information
