Panasonic TC-11LV1

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

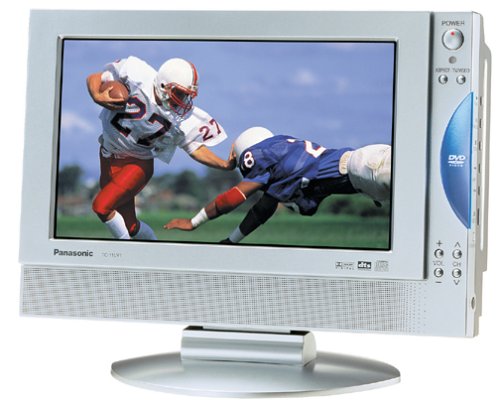

Panasonic TC-11LV1

Specifications

Screen size:11 inches
TV type:TFT LCD
HDTV capable:No
Aspect ratio:16:9
3:2 pulldown:No
Includes DVD player:Yes
Playback formats:DVD-Video, VCD, audio CD
Region playback:Compatible only with discs coded for Region 1 and for All Regions
Resume:Yes (1 disc)
Repeat play:Yes (including A-B)
Random play:Yes
OSD:Yes (onscreen display)
Aspect-ratio control:Yes (zoom mode eliminates letterbox black bars on the borders of the image)
Audio DAC:24-bit, 96 kHz
Surround sound:Dolby Digital, DTS 5.1-channel surround output
Surround sound (simulated):Yes (simulated surround from 2-channel sources)
Speaker wattage per channel:1 (from 35 to 16,000 Hz, with 10 percent total harmonic distortion)
Number of speakers:2 (1.5 x 1.1 inches each)
Includes radio:No
Comb filter:Yes (3D Y/C)
Line doubling:No
Noise reduction:No
Signal type:NTSC
Active Light Control:Yes (automatically detects the brightness levels of the input signal and adjusts the backlight accordingly)
Black-level expansion:No
Auto channel setup:Yes
Channel labeling:No
Input labeling:Yes
Direct input selection:No
Closed captioning:No
Mute:Yes
Picture modes:Standard, Cinema, Dynamic
Last-channel recall:No
Multilingual menu:Yes (English, French, Spanish)
Parental control:Yes (child lock)
Picture-in-picture (PIP):No
Remote control:Yes
SAP:Yes
Sleep timer:Yes
Audio tone controls:Yes (electronic bass and treble)
Audio balance:Yes
VGA/SVGA input:0
Audio outputs:1 minijack (.125-inch) optical digital-audio (for connection with a compatible surround receiver)
Audio inputs:1 stereo analog (left/right) RCA
Video outputs:2 (1 composite-video, 1 S-video; DVD signal only)
Video inputs:3
Headphone jack:Yes (.125-inch)
Digital video input:0
Component video:0
Composite video:1
S-video:1
RF:1
Pixels:854 x 480
Front AV jacks:No
Power supply:AC 120V, 60 Hz
Power consumption:40 watts average use (maximum current 2.5 A); 0.8 watt standby
Width:12.8 inches
Height: With stand: 9.89 inches; without stand: 8.55 inches
Depth: With stand: 6.7 inches; without stand: 2.72 inches
Weight:7.1 pounds
In the box:TV/DVD combo, remote control, remote batteries, a user's manual, a warranty card, AC power adapter, AC power cord, and a service-center list
