Panasonic TC-15LV1

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

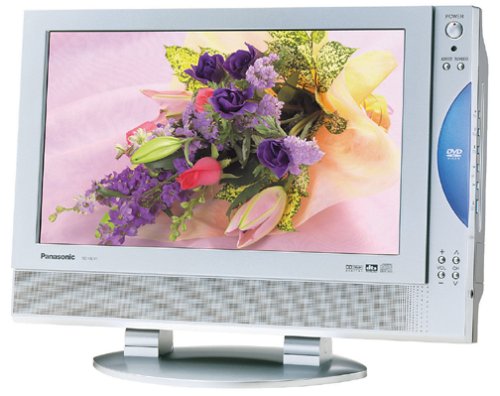

Panasonic TC-15LV1

Specifications

Screen size:15 inches
TV type:LCD
HDTV capable:Yes (EDTV, up to 480p resolution)
Aspect ratio:16:9
Speaker wattage per channel:6.5 (with 10 percent THD)
Number of speakers:3 (left, right, center)
Includes DVD player:Yes
Progressive scan:Yes
Includes radio:No (includes 181-channel NTSC tuner)
Comb filter:Digital, Motion-Adaptive 3D-Y/C
Line doubling:No
Signal type:NTSC, decoded ATSC (up to 480p resolution)
Auto channel setup:Yes
Video input labeling:Yes (with presets)
Channel labeling:No
Closed captioning:Yes
Last-channel recall:Yes (Rapid Tune)
Multilingual menu:Yes (English, French, Spanish)
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):No
Remote control:Yes
SAP:Yes
Sleep timer:Yes
Surround sound:Dolby Digital decoding (decoded playback through set or digital output/passthrough) and simulated surround sound
VGA/SVGA input:No
Audio outputs:1 stereo analog (left/right), 1 optical digital-audio
Audio inputs:1 stereo analog (left/right)
Video outputs:0
Video inputs:4
Headphone jack:Yes (.125-inch)
Component video:1
Composite video:1
S-video:1
RF:1
Pixels:854 (H) x 480 (V)
Contrast ratio:450:1
Brightness:500 cd/m2
Horizontal viewing angle:160 degrees
Response time:16 ms
Front AV jacks:No
Tilt angle:15 degrees up, 5 degrees down
New pixel controller:No
Video noise reduction:Yes
LCD artificial intelligence:Yes
Audio tone controls:Bass/treble
Hammer Drive sound system:Yes
Energy Star compliant:Yes
Sound leveler system:Yes (Artificial Intelligence sound)
Length:7.1 inches
Width:16.7 inches
Height:12.6 inches
Weight:13.2 pounds
