Panasonic TC-22LT1

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

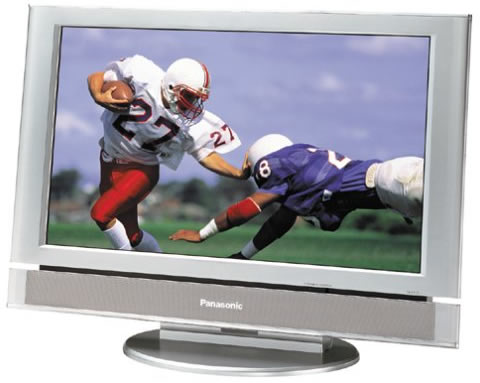

Panasonic TC-22LT1

Specifications

Screen size:22 inches
TV type:LCD
HDTV capable:Yes (EDTV, up to 480p)
Aspect ratio:16:9
Speaker wattage per channel:9 (with 10 percent THD at rated power)
Number of speakers:2 (2-way each)
Comb filter:Yes (3D Y/C)
Signal type:NTSC
Closed captioning:Yes
Multilingual menu:Yes (English, French, Spanish)
Parental control:Yes (V-chip)
Picture-in-picture (PIP):No
Remote control:Yes (card-sized)
SAP:Yes
Sleep timer:Yes
Surround sound:Yes (simulated)
VGA/SVGA input:No
Audio outputs:1 stereo analog (left/right) RCA, 1 optical digital-audio
Audio inputs:2 stereo analog (left/right) RCA
Video outputs:0
Video inputs:6
Headphone jack:Yes (.125-inch)
Digital video input:None
Component video:2 (1 D2/Y Pb Pr conversion cable supplied)
Composite video:2
S-video:2
RF:0
Pixels:854 x 480
Contrast ratio:400:1
Brightness:400 cd/m2
Horizontal viewing angle:120 degrees
Vertical viewing angle:100 degrees
Front AV jacks:No
Wall mountable:No
Power input:AC 120V, 60 Hz
Power consumption:52 watts (standby: 2 watts)
Width:23.1 inches
Height:16.7 inches
Depth:11.8 inches
Weight:25.4 pounds
In the box:LCD TV, card-sized remote control, battery, D2/Y Pb Pr conversion cable, user's manual, warranty info
