Panasonic TH-42PA20U/P

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

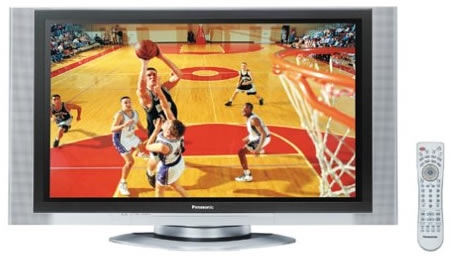

Panasonic TH-42PA20U/P

Specifications

In the box:Monitor, pedestal stand, remote control, remote batteries, and user's manual
Screen size:42 inches
TV type:Gas plasma
HDTV capable:Yes (EDTV, up to 480p)
Aspect ratio:16:9
Speaker wattage per channel:8
Number of speakers:2 (with bass-reflex speakers)
3:2 pulldown:Yes
Comb filter:Yes (3-D Y/C digital comb filter)
Signal type:NTSC (accepts VGA, SVGA, XGA signals from a PC)
Black-level expansion:Yes
Picture enhancements:Advanced Progressive Processing, Anti-Reflective Screen Coating, New Real Black Drive System, Mach Band Effect Enhancer, Gamma Enhancement System
PC Menu:Yes
Auto channel setup:Yes
Channel banner:Yes
Closed captioning:Yes
Multilingual menu:English, Spanish, French
Parental control:V-Chip
Picture-in-picture (PIP):Yes (split-screen display, scalable from .0625 to .25 normal size)
Remote control:Yes
Sleep timer:Yes (with 2 on-off timers)
Surround sound:Yes (BBE ViVA HD3D simulated surround)
VGA/SVGA input:1 (front-panel)
Audio outputs:1 stereo analog (left/right) RCA
Audio inputs:6 stereo analog (left/right) RCA
Video outputs:2 (1 composite-video, 1 RF, rear)
Video inputs:12
Headphone jack:Yes (.125-inch)
DVI-HDTV:1
Component video:2 rear
Composite video:2 rear, 1 front
S-video:2 rear, 1 front
RF:2
Monitor:Yes (includes no NTSC or ATSC tuner or receiver)
Pixels:852 x 480
Contrast ratio:4,000:1
Brightness:400 cd/m2
Dot pitch:1.08 x 1.08 mm
Gradation:1,536 shades
Colors:Over 1 billion
Horizontal viewing angle:160 degrees
Vertical viewing angle:160 degrees
Front AV jacks:Yes
Sound leveler system:Yes (Artificial Intelligence Sound)
Wall mountable:Yes
Optional accessory:Wall-mounting kit
Power supply:AC 100 to 120V, 50 to 60Hz
Power consumption:425 watts (maximum)
Depth:3.9 inches
Width:46 inches
Height:25.9 inches
Weight:77.2 pounds
