Panasonic TH-42PWD7UY

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

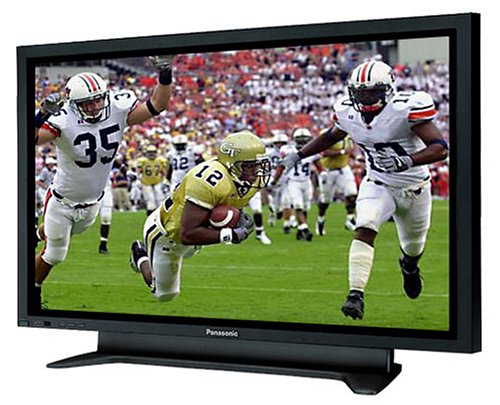

Panasonic TH-42PWD7UY

Specifications

Screen size diagonal:42 inches
Screen size effective:36.2 by 20.4 inches
Screen aspect:16:9 wide
Number of pixels:408,960 (852 x 480) pixels
Pixel pitch:1.08 millimeters
Displayable colors:3,620 million colors
Contrast ratio:4000:1
Panel life:60,000 hours
Viewing angle:More than 160 degrees horizontally and vertically
Real MACH system:Yes
Real Black Drive System:Yes
Color system:NTSC, PAL, SECAM, PAL 60Hz, M-NTSC
Audio output:16 watt (8 watts by 2)
Onscreen display:US and UK English, Spanish, French, German, Italian, Chinese, Japanese
Screen coating:Anti-Reflection coating
Composite video input:BNC coaxial
S-Video input:Yes
Audio input:RCA phono type, M3 stereo plug
PC input:Mini D-Sub 15-pin
Power supply:AC 120 volts, 50/60 Hz
Power consumption:290 Watts
Operating temperature:32 to 104 degrees F
Operating humidity:20 to 80 percent
Height:24 inches
Width:40.2 inches
Depth:3.5 inches
Weight:63.9 pounds
