Philips 26PF9966

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

Features

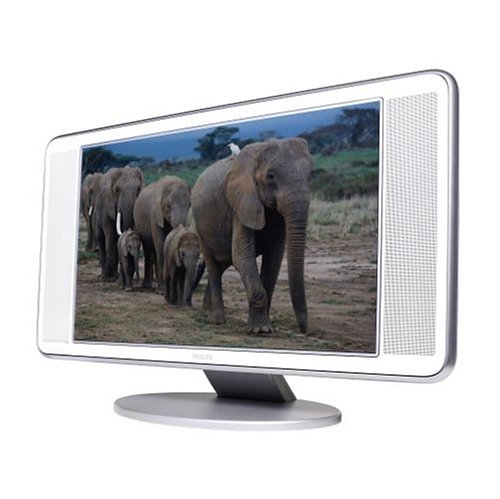

Philips 26PF9966

Specifications

Screen size: 26 inches
TV type: S-IPS active-matrix TFT LCD
HDTV capable: Yes
Aspect ratio: 16:9
3:2 pulldown: No
Memory card slot: No
Speaker wattage per channel: 5 watts RMS, 20 watts peak
Number of speakers: 2
Includes radio: Yes (with RDS)
Radio presets: 40 (auto/manual store)
Comb filter: Yes (3D digital)
Line doubling: No
Noise reduction: Yes
Signal type: NTSC, decoded ATSC
Multimedia modes: 8 (including 2 Macintosh modes)
Black-level expansion: Yes (Dynamic Contrast, part of Digital Crystal Clear III)
Picture enhancements: Pixel Plus, Digital Crystal Clear, Active Control Plus, motion-adaptive deinterlacing
Picture modes: 5-level Auto Picture (soft, natural, rich, personal, and multimedia); 6 widescreen modes : 4:3, Zoom 14:9, Zoom 16:9, Subtitle Zoom, Super Zoom, Widescreen
Sound modes: SmartSound control (settings for movie, speech music, personal)
Auto channel setup: Yes (100 preset channels)
Closed captioning: Yes
Mute: Yes
Last-channel recall: Yes
Multilingual menu: Yes (English, Spanish, French)
Parental control: Yes (child lock)
Picture-in-picture (PIP): Yes (picture-in-picture, picture-in-graphics, picture-by-picture)
Picture freeze: Yes
Remote control: Yes (slim universal remote)
Sleep timer: Yes (up to 180 minutes)
Audio tone controls: Dynamic Bass Enhancement
Surround sound: Virtual Dolby Surround (simulated surround sound)
VGA/SVGA input: 1 (15-pin D-Sub)
Audio outputs: 0
Audio inputs: 1 stereo analog (left/right) RCA, 3 stereo .125-inch minijack
Video outputs: 1 (composite-video)
Video inputs: 8
Headphone jack: Yes (.125-inch, with dedicated volume control)
Digital video input: 1 (HDMI)
Component video: 1
Composite video: 2
S-video: 2
RF: 1
Data port: 0
Monitor: No (includes built-in NTSC tuner)
Pixels: 1,280 x 768 (x3) pixels
Contrast ratio: 400:1
Brightness: 450 cd/m3 (nits)
Horizontal viewing angle: 176 degrees
Vertical viewing angle: 176 degrees
Response time: 16 ms
Front AV jacks: No
Side AV jacks: Yes
Wall mountable: Yes
Power supply: AC 90 to 240V, 50/60 Hz
Power consumption: 160 watts (standby: 2 watts)
Width: 31 inches
Height: 17.3 inches (19.8 inches with stand)
Depth: 4.5 inches (10.3 inches with stand)
Weight: 33 pounds
In the box: TV, stand, remote control, remote batteries, and a user's manual
