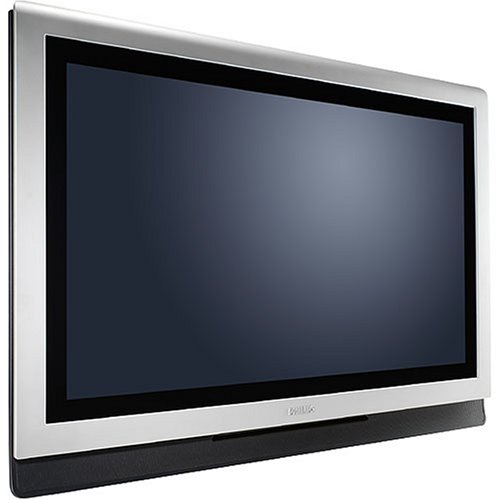

Philips 32PF9966

Operating manual

Features

Philips 32PF9966

Specifications

Screen size: 32 inches
TV type: S-IPS active-matrix TFT LCD
HDTV capable: Yes
Aspect ratio: 16:9
3:2 pulldown: No
Memory card slot: No
Speaker wattage per channel: 15 watts RMS
Number of speakers: 2 (2-way speakers each using a wOOx woofer and a dome tweeter)
Includes radio: No
Protective screen coating: Yes (antireflective)
Comb filter: Yes (3D digital)
Line doubling: No
Noise reduction: Yes
Signal type: NTSC, decoded ATSC
Multimedia modes: 8 (including 2 Macintosh modes)
Black-level expansion: Yes (Dynamic Contrast, part of Digital Crystal Clear III)
Picture enhancements: Ambilight system, Pixel Plus, Digital Natural Motion, Digital Crystal Clear, Active Control Plus, anti-aging system
Picture modes: 6 Smart Picture settings, 6 widescreen modes : 4:3, Zoom 14:9, Zoom 16:9, Subtitle Zoom, Super Zoom, Widescreen
Sound modes: 4 SmartSound control (settings for movie, speech music, personal)
Ambilight settings: Full multicolor setting; dimming function; 6 preset modes and user preset; full operation in stand-by mode; efficient, low-energy lamp system; lamp life: more than 60,000 hours
Auto channel setup: Yes (100 preset channels)
Closed captioning: Yes
Mute: Yes
Last-channel recall: Yes
Multilingual menu: Yes (English, Spanish, French)
Parental control: Yes (child lock, V-Chip)
Picture-in-picture (PIP): Yes (2-tuner, DualScreen split-screen picture-in-picture)
Picture freeze: Yes

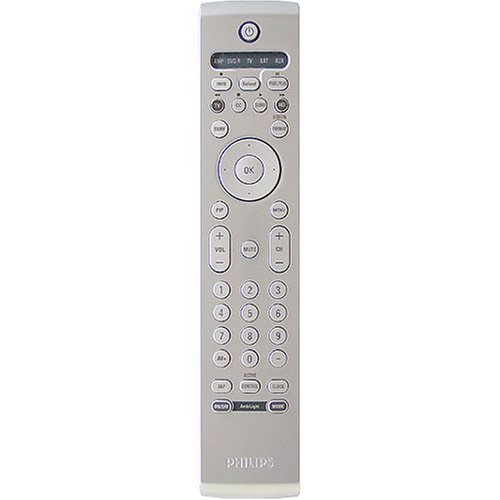

Remote control: Yes (RC4307 ergonomic 6-device universal remote, including DVD controls)
Sleep timer: Yes (up to 240 minutes)
Audio tone controls: Dynamic Bass Enhancement
Surround sound: Virtual Dolby Surround
VGA/SVGA input: 1 (RGB+HV component-video)
Audio outputs: 2 stereo analog (left/right) RCA, 1 monaural subwoofer output
Audio inputs: 4 stereo analog (left/right) RCA, 1 monaural RCA center-channel input
Video outputs: 1 (composite-video)
Video inputs: 8
Headphone jack: Yes (.125-inch, with dedicated volume control)
Digital video input: 1 (HDMI)
Component video: 1 (plus 1 RGB+HV input for PC)
Composite video: 2
S-video: 3
RF: 0
Data port: 0
Monitor: No (includes built-in NTSC tuner)
Pixels: 1,366 x 768 (x3) pixels
Contrast ratio: 800:1
Brightness: 500 cd/m2
Horizontal viewing angle: 170 degrees
Vertical viewing angle: 170 degrees
Response time: Less than 15 ms
Front AV jacks: No
Side AV jacks: Yes
Wall mountable: Yes
Power supply: AC 110 to 120V, 60 Hz
Power consumption: 165 watts (standby: less than 1.5 watts)
UPC: 0 37849 945597 1
Width: 34.5 inches
Height: 24.1 inches
Depth: 4.2 inches
Weight: 44.1 pounds
In the box: TV, a designer tabletop stand, a universal remote control, remote batteries, wall-mount brackets, a DVI-to-HDMI conversion cable, and a user's manual
