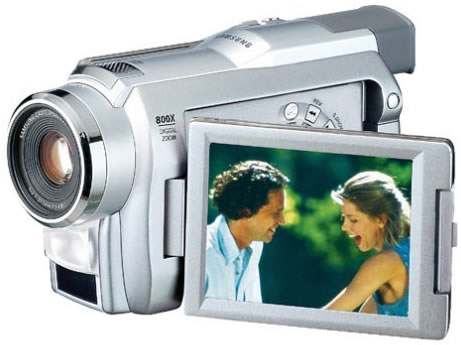

Samsung SC-D27

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual
Samsung SC-D27

Specifications

Format:Mini-DV
Signal Format:NTSC
Dimension(WxHxD):61.5 x 90 x 156
Weight(Net):520g
Power Consumption with LCD on / EVF on:4.9W / 3.9W
LCD Monitor Size:3.5"
LCD Monitor Pixel:112K
LCD Monitor Bright / Color Adjust:Yes
LCD Monitor Rotation Angle:90 - 270 degrees
LCD Monitor Mirror:Yes
Viewfinder Display Device:Balck and White
Viewfinder Size:0.24 inches
Viewfinder Pixel:77K
Viewfinder Diopter Adjust:Yes
Built-in Light:Yes
Optical Zoom:10x
Digital Zoom (selectable):100x/200x/400x/800x
Focal Length (f):2.7 ~ 27mm
F.No(Wide / Tele):1.4 / 1.8
Zooming Speed:Variable 4 Step
Filter Diameter:37
0 Lux Recording:Nite Pix
Macro:Wide Macro
CCD size:1 / 6 inches
CCD Pixel:680,000
Features:Digital image Stabilizer, Auto Focus / Manual Focus, Program AE(Auto, Sports, Portrait, Spotlight, Sand / snow, High Speed Shutter), Power Nite Pix, Auto Shutter Speed, Auto White Balance, Manual White Balance(A/H/I/O), Photo Mode, Built-in Digital Camera, Digital Special Effects(Art, Mosaic, Sepia, Nega, Mirror, B/W, Emboss, Cinema, Make-up (R/G/B/Y)), Fade In/Out
Manual Shutter:1/60 - 1/10000, 8 Step
Slow Shutter:1/8, 1/15, 1/30
Manual Iris Set:30 step
Back Light compensation:BLC
Low Light sensitivity (Visible):3 Lux
Heads:2
Diameter of Drum:21.7mm
Features:Recording Speed (SP/LP), Playback Speed (SP/LP), Auto Tracking, PB DSE (Mosaic / Mirror), PB Zoom
Audio System:12/ 16 bit PCM
Speaker (0.3W):Yes
Volume Adjust:Yes
Built-in Microphone:Stereo
Wind Filter:Yes
Audio Dub(SP):12bit
Memory Media:M.S Slot
Motion Picture Format / Resolution:MPEG4 / QVGA 10fps
Still Image Format / Resolution:JPEG / VGA
Image Quality Mode:Super Fine / Fine / Normal
Multi Display:6 scene
Continuous Shot:Yes
PC Interface:IEEE1394(In / Out), OS for IEEE1394(Win98~XP / Mac), USB Format(USB1.1), OS for USB(Win98~XP / Mac), Bundle S/W1 (USB Driver-DVC Media), Volume(P3 / 450MHz, 64MB, 4GB)
Motion Picture Streaming Format / Resolution:MPEG4 / QVGA 10fps
Still Image Format / Resolution:JPEG / VGA
PC Camera / E-mail:Yes
External Storage:Yes
Included Accessories:AC Adaptor, AC Cord, Lithium-ion Battery, Lithium cell (for clock), Lithium cell (for remote), AV Cable, Shoulder Strap, Remote Control, Lens Ring Hood, USB cable, S Cable, PC software CD
