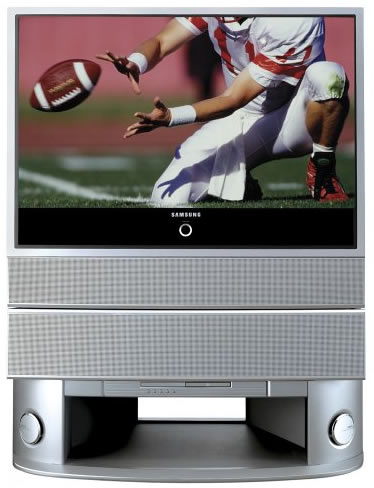

Samsung HC-P4363W

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Samsung HC-P4363W

Specifications

Screen size:43 inches
TV type:Rear-projection with HD fine-pitch screen
HDTV capable:Yes
Aspect ratio:16:9
Display system:Three 7-inch HD fine-resolution CRTs with Fine Focus lenses
Focus:Samsung Auto Self Focus (digital 15-point auto focus)
Dot pitch:.52 mm
Speaker wattage per channel:20 watts per channel x 5 plus 80 watts for the subwoofer (180 watts total output)
Number of speakers:3 drivers for the center channel, 2 each for the left/right and left/right surrounds, and 2 for the subwoofer signal (13 drivers total)
Comb filter:3-line digital
Scan velocity modulation:Yes
3:2 pulldown detection:Yes
Signal type:NTSC, decoded ATSC (480p, 1080i)
Protective screen guard:Yes (antiglare)
Channel labeling:Yes
Auto pixel shift:Yes (reduces image burn-in)
Picture modes:Standard, movie, custom, dynamic
Sound modes:Standard, music, movie, speech, or custom
Multilingual menu:Yes (English, Spanish, French)
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):2-tuner with multiwindow viewing and stock-ticker modes
Remote control:Universal
Discrete IR codes:Yes (aides in remote macro commands)
SAP:Yes
Non-volatile memory:Preserves settings during power outages
VGA/SVGA input:No
Audio outputs:1 stereo analog (left/right) RCA, 2 left/right surround-sound speaker terminals, 1 digital-audio
Audio inputs:5 stereo analog (left/right) RCA, 1 stereo minijack left/right input (for DVI-adapter source), 2 digital (1 optical, 1 coaxial)
Video outputs:1 RF
Video inputs:10
Headphone jack:No
Digital video input:1 HDMI-HDTV
Component video:2 (HD/SD)
Composite video:3
S-video:2
RF:2
Color temperature control:Yes
Front AV jacks:No
Side AV jacks:Yes
Power supply:AC 120V, 60 Hz
UPC:036725243842
Width:40.5 inches
Height:53.2 inches
Depth:23 inches
Weight:160.9 pounds
Shipping dimensions:44.9 x 57.6 x 28.5 inches (W x H x D)
Shipping weight:188.5 pounds
In the box:TV, user's manual, remote control, 2 AAA batteries, and registration/warranty card
