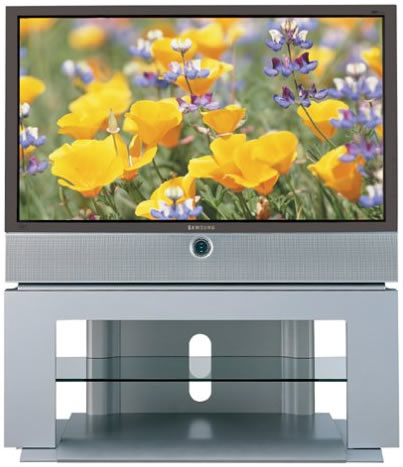

Samsung HL-N437W

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Samsung HLN437W

Specifications

In the box:TV, remote control, 2 AA batteries, user's manual, warranty information
Screen size:43 inches
TV type:Projection with Digital Micromirror Device (DMD) and DLP (Digital Light Processing) technology--no Screen Aging or Burn-in Effects
HDTV capable:Yes
Aspect ratio:16:9
Speaker wattage per channel:15
Number of speakers:2
Video technologies:Samsung DNIe (Digital Natural Image engine), Detail Enhancer, Contrast Enhancer, White Balance and Color Optimizer, Noise Reduction with 3D Motion Optimizer, Faroudja Film Mode 3:2 Pull Down Enhancement
Comb filter:Yes (3D Y/C digital)
Horizontal resolution:720 lines
Line doubling:Yes (All Format Conversion to 720p)
Noise reduction:Yes
Signal type:NTSC, decoded ATSC (analog or digital)
Pixels:1,280 x 720
Viewing angle:150 degrees horizontal
Dot pitch:HD Fine Pitch Screen (0.155 mm)
Lamp life:8000 Hour 100-Watt User Replaceable Lamp
Refresh rate:60 Hz
Last-channel recall:Yes
Multilingual menu:Yes (English, Spanish, French)
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):Yes (2-Tuner PIP with Side-by-Side Split Screen)
Remote control:Yes (universal)
SAP:Yes
Sleep timer:Yes
Audio tone controls:BBE High-Definition Sound dialogue enhancement
Surround sound:Yes (simulated)
VGA/SVGA input:No
Audio outputs:1 stereo analog (left/right)
Audio inputs:3 stereo analog (left/right)
Video outputs:1 (RF)
Video inputs:10 (including 1 DVI and 1 PC: 15-pin D-sub, XGA)
Headphone jack:No
Component video:3 (2 HD, 1 DVD)
Composite video:3
S-video:3
RF:2
HDCP copy protection:Yes (on DVI input)
Front AV jacks:No
Side AV jacks:Yes
Length:15.7 inches
Width:40.5 inches
Height:29.7 inches
Weight:67.2 pounds
