Samsung HP-P5581

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

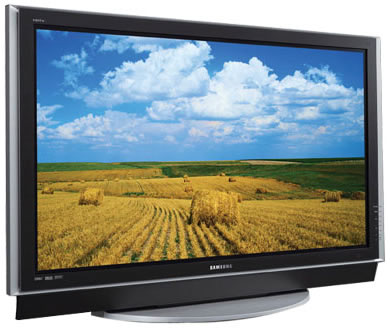

Samsung HP-P5581

Specifications

Screen size:55 inches
TV type:Gas-plasma
HDTV capable:Yes
Aspect ratio:16:9
3:2 pulldown detection:No
Speaker wattage per channel:15 watts x 2
Number of speakers:2 (detachable)
CableCARD slot:Yes
Comb filter:3D Y/C digital
Signal type:NTSC, ATSC (receives and decodes 480p, 720p, 1080i)
Picture enhancements:DNIe (Samsung Digital Natural Image engine): combines Motion Optimizer, Contrast Enhancer, Detail Enhancer, and Color Optimizer
Picture modes:Standard/Custom/Dynamic/Movie
Sound modes:Standard/Custom/Music/Movie/Speech
Closed captioning:Yes
Mute:Yes
Multilingual menu:English, Spanish, French
Parental control:V-Chip
Picture-in-picture (PIP):2-tuner with split-screen
Remote control:Yes
SAP:Yes
Sleep timer:Yes
Audio tone controls:Electronic equalizer settings
Audio balance:No
Surround sound:SRS TruSurround XT (simulated surround from 2 channels)
VGA/SVGA input:0
Audio outputs:1 stereo analog (left/right) RCA, 1 monaural RCA subwoofer output, 2 digital-audio outputs (1 optical, 1 coaxial), 2 speaker-level analog audio outputs (with clip-type speaker terminals)
Audio inputs:4 stereo analog (left/right) RCA
Video outputs:1 composite-video, 1 RF (tuner passthrough only)
Video inputs:9
Headphone jack:No
Digital video input:2 (1 DVI-HDTV with HDCP, 1 HDMI)
Component video:1 (HD)
Composite video:2
S-video:2
RF:2 (antenna inputs: 1 NTSC, 1 ATSC)
Pixels:1,366 x 768
Contrast ratio:900:1
Brightness:1,000 cd/m2
Horizontal viewing angle:160 degrees
Vertical viewing angle:160 degrees
Cooling system:Fanless
Lamp life:50,000 hours (panel life)
Color temperature control:Yes
Discrete IR codes:Yes
Front AV jacks:No
Side AV jacks:Yes
Wall mountable:Yes (with optional wallmount kit)
Optional accessories:Wallmount (WMN4242)
Power supply:AC 120V, 60 Hz
Power consumption:510 watts
Approvals:FCC Class B Certification
UPC:036725255401
Width:56.1 inches
Height:With speakers and stand: 35.1 inches; without speakers and stand: 32.5 inches
Depth:With speakers and stand: 4.3 inches; without speakers and stand: 3.6 inches
Weight:With speakers and stand: 151.3 pounds; without speakers and stand: 127.9 pounds
Shipping dimensions:61.7 x 42.8 x 25.9 inches (W x H x D)
Shipping weight:198.4 pounds
In the box:TV, pedestal stand, bottom-mount speakers, remote control, remote batteries, 4 ferrite cores, a user's manual, a warranty card, an RF coaxial video cable, and an AC power cord
