Samsung LT-N1735

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

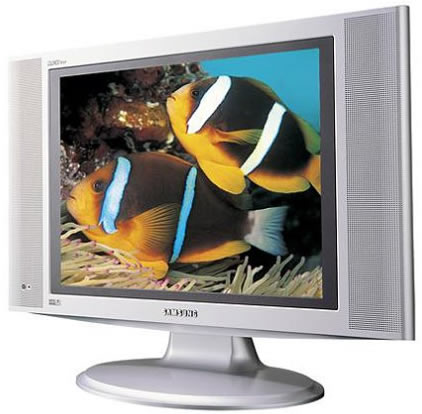

Samsung LTN1735

Specifications

In the box:LCD TV, power cord, remote control, remote batteries (2 AAA), user's manual
Screen size:17 inches
TV type:TFT LCD
HDTV capable:No
Aspect ratio:4:3
Speaker wattage per channel:3
Number of speakers:2
Comb filter:Yes (digital)
Signal type:NTSC, 480i, and decoded 480p, 720p, or 1080i (does not include ATSC tuner)
Channel coverage:VHF 2-13, UHF 14-69, CATV 1-125 (up to 181 pre-selected channels)
Closed captioning:Yes
Screen-capture picture freezing:Yes
Auto channel setup:Yes
Last-channel recall:Yes
Input labeling:Yes
Sleep timer:Yes (and on timer)
Multilingual menu:Yes (English, French, Spanish)
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):No
Picture modes:Dynamic, standard, movie, custom, auto
Remote control:Yes
Surround sound:No
VGA/SVGA input:No
Audio outputs:0
Audio inputs:2 stereo analog audio (left/right)
Video outputs:0
Video inputs:4
Headphone jack:Yes (.125-inch)
Component video:1 (interlaced)
Composite video:1
S-video:1
RF:1
Pixels:640 x 480
Contrast ratio:600:1
Brightness:450 cd/m2
Horizontal viewing angle:170 degrees
Vertical viewing angle:170 degrees
Response time:25 ms
Lamp life:60,000 hours
Color temperature control:Yes (normal, warm, and cool)
Front AV jacks:No
Sound leveler system:Yes
Improved cable management:Yes
Wall mounting:Yes (includes VESA-compliant holes)
Kensington lock:Yes
Antenna:CATV/VHF/UHF 75-ohm, F-type
Power supply:120W AC, 60 Hz
Power consumption:Approximately 62 watts (power on), 2 watts (standby)
UPC:036725217355
Length:2.4 inches (7.2 inches with stand)
Width:20.5 inches
Height:14.1 inches (16.1 inches with stand)
Weight:11 pounds (with stand)
