Samsung TX-N2030FX/XAA

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

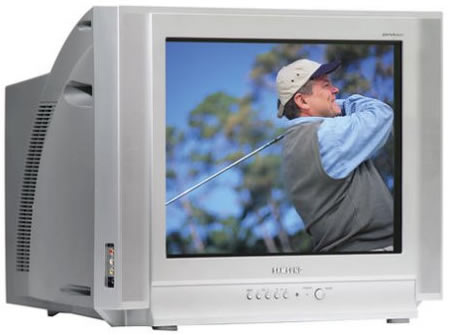

 Samsung TX-N2030F

Specifications

In the box:TV, remote control, remote batteries, and user's manual
Screen size:20 inches
TV type:CRT with DynaFlat anti-glare picture tube
HDTV capable:No
Aspect ratio:4:3
Speaker wattage per channel:3
Number of speakers:2
Comb filter:Yes (digital)
Invar shadow mask:Yes
Scan velocity modulation:Yes
3:2 pulldown:No
Signal type:NTSC
Black-level expansion:Yes
White-peak limiter:Yes
Auto channel setup:Yes
Channel labeling:Yes
Closed captioning:Yes
Mute:Yes
Picture modes:4 (Standard/Dynamic/Movie/Custom, with user adjustable brightness, contrast, sharpness, color, and tint)
Picture enhancements:Auto Kine Aging Bias (regulates the set's white balance)
Last-channel recall:Yes
Multilingual menu:Yes (English, Spanish, French)
Parental control:Yes (V-Chip)
Picture-in-picture (PIP):No
Remote control:Full-function
Remote Surf timer:Yes (returns TV to original channel so other channels can be browsed during commercial breaks)
SAP:Yes
Self-diagnostic system:Yes (facilitates proper setup)
Auto clock set:Yes
Sleep timer:Yes (and on timer)
Audio tone controls:4 preset audio modes: Standard, Music, Movie, Speech, plus 1 custom setting; Turbo Sound boosts high and low frequencies
Surround sound:Yes
VGA/SVGA input:No
Audio outputs:1 stereo analog (left/right) RCA, fixed-level
Audio inputs:3 stereo analog (left/right) RCA
Video outputs:0
Video inputs:5
Headphone jack:Yes (.125-inch, side panel)
DVI-HDTV:0
Component video:1
Composite video:3
S-video:0
RF:1
Color temperature control:Yes
Front AV jacks:No
Side AV jacks:Yes
Sound leveler system:Yes
Component linking:No
Power supply:AC 120V, 60 Hz
Power consumption:90 watts (2.6 watts standby)
Energy Star compliant:Yes
UPC:036725220010
Width:22.8 inches
Height:18.3 inches
Depth:19.2 inches
Weight:52.7 pounds
