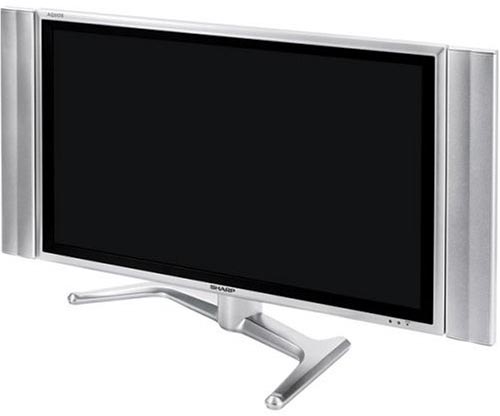

Sharp LC-32G4U

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

Features

Sharp LC-32G4U

Specifications

Screen size: 32 inches
TV type: Active Matrix (a-si TFT) Advanced Super View LCD
HDTV capable: Yes (up to 720p resolution)
Aspect ratio: 16:9
Speaker wattage per channel: 10
Number of speakers: 2 (detachable)
PC Card slot: Yes
Includes radio: No
Comb filter: No
Line doubling: No
Video circuit: Sharp Quick Shoot (fast response time)
Signal type: NTSC, decoded ATSC (up to 720p)
Video modes: Sidebar, Smart Stretch, Stretch, Zoom, Dot by Dot (for PC), normal (for PC)
Picture-in-picture (PIP): No
VGA/SVGA input: 0
Audio outputs: 1 stereo analog (left/right) RCA
Audio inputs: 3 stereo analog (left/right) RCA, 1 minijack .125-inch stereo (left/right)
Video outputs: 2 (1 composite-video, 1 S-video)
Video inputs: 11
Headphone jack: No
Digital-video input: 2 (1 DVI-I, 1 HDMI)
Component video: 2 (HD)
Composite video: 3
S-video: 1
RF: 0
Monitor: No (includes NTSC PLL synthesizer tuner)
Pixels: 1,366 x 768 (Wide XGA)
Contrast ratio: 800:1
Brightness: 450 cd/m2
Horizontal viewing angle: 170 degrees
Vertical viewing angle: 170 degrees
Response time: Less than 16 ms
Lamp life: 60,000 hours (Edge-Light System)
Color temperature control: Yes (selectable
Front AV jacks: No
Sound leveler system: No
Wall mountable: Yes
Optional accessory: Wall-mount bracket AN-37AG2
Power consumption: 127 watts (TV), 48 watts (AVC)
Energy Star-compliant: Yes
Width: 38.58 inches (31.3 inches without speakers and table stand)
Height: 22.28 inches (18.91 inches without speakers and table stand)
Depth: 12.09 inches (2.78 inches without speakers and table stand)
Weight: 48.5 pounds (28.7 pounds without speakers and table stand)
In the box: LCD TV, detachable speakers, AVC system (TU-GA1U-S set-top box with all terminals), table stand, user's manual
