Sharp LC-37GD6U

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

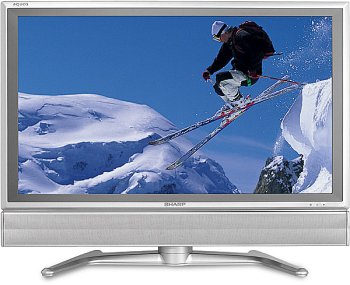

Sharp Aquos LC-37GD6U

Specifications

Screen size: 37 inches
TV type: Active-matrix (a-si TFT) Advanced Super View LCD
HDTV capable: Yes
Aspect ratio: 16:9
3:2 pulldown detection: No
Speaker wattage per channel: 10
Number of speakers: 2 (detachable)
Flash-memory port: Yes (PCMCIA PC Card slot for JPEG images, MPEG-4 video)
CableCARD slot: Yes (68-pin PCMCIA)
Includes radio: No
Comb filter: No
Line doubling: No
Video circuit: Sharp Quick Shoot (fast response time)
Noise reduction: No
Signal type: NTSC, ATSC (480p, 720p, 1080i scaled for 768 viewing)
Picture modes: Sidebar, Smart Stretch, Stretch, Zoom, Dot by Dot (for PC), Normal (for PC)
Picture-in-picture (PIP): No
VGA/SVGA input: 0
Audio outputs: 1 stereo analog (left/right) RCA, 1 minijack .125-inch stereo (left/right)
Audio inputs: 3 stereo analog (left/right) RCA, 1 monaural center-channel RCA input
Video outputs: 2 (1 S-video, 1 RF)
Video inputs: 9
Headphone jack: No
Digital-video input: 2 (1 DVI-I, 1 HDMI)
Component video: 2 (HD)
Composite video: 3
S-video: 1
RF: 1
Monitor: No (includes NTSC and ATSC tuners)
Pixels: 1,366 x 768 (Wide XGA)
Contrast ratio: 800:1
Brightness: 450 cd/m2
Horizontal viewing angle: 170 degrees
Vertical viewing angle: 170 degrees
Response time: 16 ms
Backlight: Fluorescent lamp (cold cathode type)
Lamp life: 60,000 hours
Color temperature control: Selectable
Front AV jacks: No
Side AV jacks: No
Wall mountable: Yes
Power consumption: 224 watts
Optional accessories: Wall mounts
UPC: 074000362444
Width: 36.11 inches
Height: 27.84 inches (with stand and speakers); 21.58 inches (without stand and speakers)
Depth: 12.08 inches (with stand), 4 inches (without stand)
Weight: 59.1 pounds (with stand and speakers), 40.8 pounds (without stand and speakers)
In the box: TV, speakers, table stand, and a user's manual
