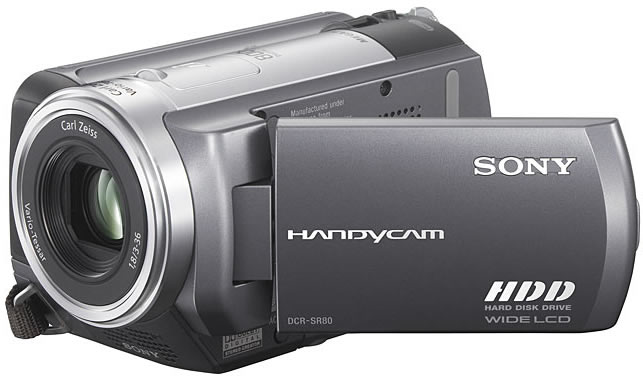

Sony DCR-SR80
Features:
- Built-in 60GB hard drive for easy file storage and one-touch DVD burning
- 1/5.5-inch, 1-megapixel CCD delivers crisp images
- 12x optical zoom; 800x digital zoom
- 2.7-inch widescreen LCD monitor
- Handycam station included
Specifications
| Imaging device: | 1/5.5-inch 1070K gross pixels CCD |
| Recording media: | 60 GB hard disk drive |
| Recording and playback times (approximate): | HQ: 14 hours; SP: 20 hours; LP 40 hours |
| Video actual: | 670K pixels (16:9), 690K (4:3) |
| Still actual: | 746K pixels (16:9), 1000K pixels (4:3) |
| Audio recording system: | Dolby Digital AC3 (2-channel) |
| SteadyShot image stabilization: | Yes (Super, Electronic) |
| Accessory shoe: | Yes, active interface shoe |
| White balance: | Auto, Indoor, One-push, Outdoor |
| Still image mode: | JPEG |
| Minimum illumination: | 7 Lux (0 Lux with Super NightShot Plus Infrared System) |
| Low-light capability: | Super NightShot Plus |
| Analog A/V input: | Yes (multi-A/V) |
| Analog A/V output: | Yes (multi-A/V) |
| Digital A/V input: | Yes (via USB) |
| Digital A/V output: | Yes (via USB) |
| USB port: | Yes; 2.0 high-speed compliant (Handycam Station) |
| i.Link interface: | N/A |
| S-video output: | Yes (via optional accessory) |
| Component video output: | N/A |
| Headphone jack: | N/A |
| Microphone input: | Yes, via active interface shoe |
| Remote jack: | Yes |
| HDMI connection output: | N/A |
| LCD: | 2.7-inch (123K pixels) touch-panel SwivelScreen LCD display |
| Lens type: | Carl Zeiss Vario-Tessar |
| Viewfinder: | N/A |
| Docking station: | Yes |
| Microphone: | Yes (built-in) |
| 35mm equivalent: | 46-628.5mm (16:9 Camera Mode), 48-675mm (4:3 Camera Mode), 43.6 - 523.2mm (16:9 Memory Mode), 40- 480 (4:3 Memory Mode) |
| Aperture: | f1.8-f2.5 |
| Exposure: | Touch panel (24 steps) |
| Filter diameter: | 30mm |
| Focal distance: | 3.0 - 36mm |
| Focus: | Full-range auto/manual (touch panel) |
| Progressive shutter mode: | Yes |
| Shutter speed: | Auto, 1/4-1/4000 (AE mode) |
| Optical zoom: | 12x |
| Digital zoom: | 800x |
| Resolution: | 1MP |
| Battery type: | InfoLithium with AccuPower meter system (NP-FP50) |
| Operating system compatibility: | Microsoft Windows 2000 Professional, XP Home, XP Professional |
| Supplied software: | ImageMixer for hard disk drive Handycam camcorder Video |
| Video recording system: | MPEG2 |
| Analog-to-digital converter: | Yes |
| Format(s) supported: | Non-removable hard disk drive |
| Dimensions (H x W x D): | 2 3/4 x 2 7/8 x 4 5/8 inches |
| Weight: | 14 ounces (with supplied battery) |
| Supplied accessories: | Power adapter/in-camera charger (AC-L15), rechargeable InfoLithium battery (NPFP50), Handycam Station, A/V cable, lens cap, ImageMixer for hard disk drive, application software, drivers and handbook, USB cable |
