Beta SP is an obsolete professional tape format developed by Sony. It replaced the original "Betacam" format from the early 1980's, and was the industry standard in portable ENG and EFP for many years. It was superseded by digital formats such as Beta SX.

This camera is made up of four separate components, which can each be removed and replaced: The lens, the camera, the recorder adaptor, and the viewfinder.


Left View

Sony Betacam : Left View
3200K, 5600K + 1/4 ND, 5600K, 5600K + 1/16 ND
Camera power, gain (9/18dB), white balance memory/preset, menu access, shutter, zebras, and timing controls.
Time code, audio selectors and level control, VU meters, audio speaker.
Recording options and audio selectors.

Right View

Timing inputs and outputs.
Composite video output, remote connection, viewfinder connection, lens connection.

Front View

Tally lamp, tally off/on, peaking, contrast and brightness.
VTR record, white and black balance, menu buttons.

Top View

53704.jpg (11223 bytes) The tape transport buttons are on top of the camera back, under a protective cover.

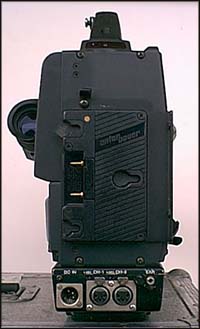

Rear View

Rear View Rear lower panel:
12V DC power input, 2 balanced audio inputs, headphone socket.

This camera is fitted with an Anton-Bauer battery holder.
