Sony HDR-FX1

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

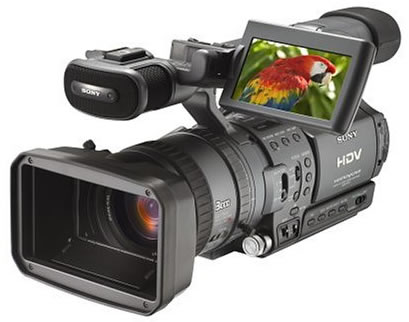

Sony HDR-FX1

Specifications

Imaging Device:3- 1/3" 16:9 1120K Pixel Advanced HADT CCDs
Video Actual:1070K Pixels
F:1.6 - 2.8
Focal Distance:4.5 - 54.0mm
35mm Conversion:32.5 - 390mm
Filter Diameter:72mm
Optical Zoom:12X
Focusing:Full Range Auto/Manual (Ring) / One Touch
Minimum Illumination:3 lux
Shutter Speed:1/4 - 1/10,000 (in AE Mode)
Viewfinder:Color, Precision 16:9 (252K pixel)
LCD:3.5" 16:9 (250K) Precision Hybrid Color1
Accessory Shoe:Yes (Cold)
Video Input/Output:Yes (Composite (Mini) and S-Video/Yes (Component, Mini, and S-Video)
Audio Input/Output:Yes/Yes (Stereo, Mini)
i.LINK2 DV Interface (IEEE1394):Yes
Headphone Jack:Yes (Stereo, Mini)
Mic. Input:Yes (Stereo, Mini)
White Balance:Auto/One-Push (A)(B)/Preset
Iris Control:Yes, Gain Independent
Power Consumption (VF/LCD/VF+LCD):7.4W / 8.0W / 8.4W
Dimensions (WHD):6" x 7 1/8" x 14 3/8"
Weight:4 lbs 4 oz
