Sony HVR-Z1 U

User Manual

To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

High-definition, outputs component video in 1080i, 480i and 480p formats
60 frame, 50 frame, 30 frame, 25 frame and 24 frame standards
HD to SD down conversion
Record in widescreen HDV and output widescreen DVCAM and DV video
6 buttons for your special custom setting memories and menu selections

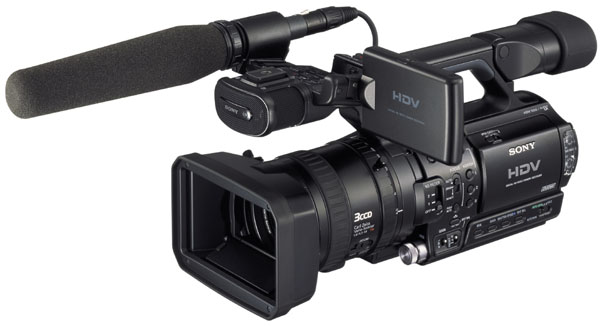

Sony HVR-Z1U

Specifications

Format:	HDV/DVCAM/DV(SP) recording, HDV/DVCAM/DV (SP) playback
Recording time:	Max. 60 minutes with HDV, 40 minutes in DVCAM, & 60 minutes in DV (SP)
Image Device:	1/3" type x3, 16:9 Super HAD CCDs
Lens:	High quality 12X optical zoom Carl Zeiss Vario-Sonnar T* lens. F4.5 to 54.0mm, F1.6 at 2.4mm; filter diameter 72mm
Picture elements:	Total pixels: approx. 1.12M pixels; effective pixels: approx. 1.04M pixels
2 Built-in filters:	ND1: 1/4 and ND2: 1/32
Video signal system:	Switchable NTSC/PAL color system
Scanning system:	1080/60i, 1080/50i (switchable)
Sync System:	Internal (HD & SD)
Shutter speed:	1/4 to 1/10000 sec (50i/60i)
Connectors:	S-Video, A/V, Component output, XLR IN (x2), i.LINK, LANC, headphone stereo mini
Minimum illumination:	3 lux @ 18db, F1.6, normal shutter
Exposure:	Auto, Manual
Viewfinder:	Hybrid Precision 16:9 Color & B/W selectable 252,000 pixel
Audio:	DV/DVCAM Rec. 48KHz/16 bit, 32KHz 12 bit; HDV Rec.: MPEG-1 Audio Layer II
Built-in microphone:	Wide range stereo microphone. Please note that the directional shotgun microphone is not included with this camcorder.
Speaker:	Built-in dynamic
LCD panel:	Hybrid 16:9 3.5" type, 250K pixels (approx.)
Weight:	4 lbs, 4 oz
Dimensions:	6" x 7 1/8" x 14 3/8"
Power consumption:	(VF/LCD/VF+LCD): 7.4W/8.0W/8.4W
