Sony MFM-HT75W

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

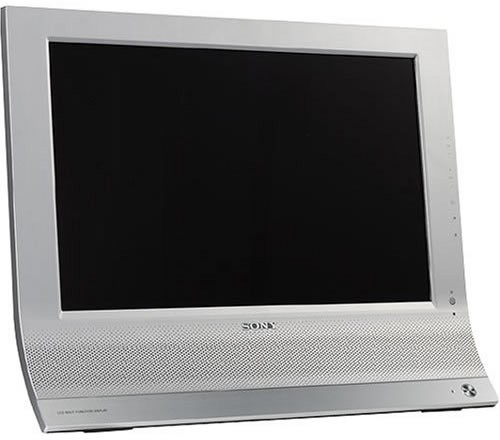

Sony MFM-HT75W

Specifications

Display size: 17.0"
Diagonal viewable screen size: 17.0"
Compatibility:PC and Mac
Color:Silver frame and front face with Black back cabinet
Panel type:TFT active matrix LCD
Dot pitch:0.294 mm
Contrast ratio:800:1 (max)
Brightness:450 cd/m2
Aspect ratio:16:9
ErgoBright technology - defaults: High: 450cd/m2, middle: 350cd/m2, low: 250cd/m2, auto: 100~400cd/m2
Horizontal viewing angle:170 degrees
Vertical viewing angle:170 degrees
Tilt range:0 to 20 degrees
Height adjustment:1.2" with tilt
Response time:16ms (rise/fall)
PC input signals:Analog, digital
PC input connector/cable:HD15 (x1) and DVI-HDCP (x1) (designed for computer use)
Maximum resolution:1280 x 768
Horizontal frequency:28 - 69 kHz
Vertical frequency:48 - 85 Hz
Wall-mountable:Yes, VESA 100mm x 100mm
Plug-and-play:VESA DDC2B
TV/ audio visual input connectors:Component (YPbPr) RCA jacks, S-Video and Composite, TV
Video signals supported via YPbPr:480i (NTSC), 480p, 720p (High Definition), 1080i (High Definition) displayed in native resolution
TV tuner capability:VHF 2-13, UHF 14-69, CATV 1-125, NTSC standard
Audio: SRS WOW 3D audio technology, left and right speakers: 3 watts, subwoofer: 5 Watts, headphone jack
TV features:Picture-in-picture (PC main, Video sub), closed caption
Power consumption, maximum:68 watts
Power consumption, sleep:1.2 watts
Width:17.7"
Height:13.9" - 12.7"
Depth:6.9"
Weight:13.9 pounds
Warranty:3 years, limited (parts, labor, and backlight)
In the box:Monitor, AC power cord, HD15 PC video signal cable, DVI-D PC video signal cable, PC audio cable, 75 ohm cable, remote control & batteries, Windows and Macintosh monitor information/utility disk, limited warranty card, quick setup guide
