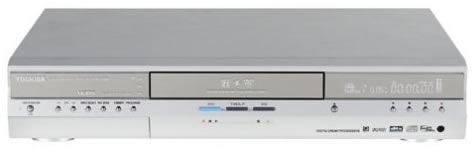

Toshiba RD-XS52

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Toshiba RD-XS52

Specifications

Disc capacity:1
Region playback:Compatible only with non-region-coded (code-free) discs and with discs coded for Region 1
Progressive scan:Yes (Digital Cinema Progressive Scan)
Switchable 480p/480i:Yes
3:2 pulldown detection:No
Built-in hard-disk recorder:Yes
HDD capacity:160 GB (about 135 hours of programming)
Data-transfer speeds:HDD to DVD-RAM: 12x; HDD to DVD-R: 24x
Memory card slot:No
Playback formats:DVD-Video (NTSC), DVD-R/-RW, DVD-RAM, red book CD, CD-R/-RW, MP3 CD, WMA CD, JPEG image CD
Recording formats:DVD-R, DVD-RAM
Picture enhancements:All-source format upconversion to 720p/1080i, 3D DNR, Mosquito DNR, Block DNR, 3D Y/C separation (comb filter)
Firmware upgradeable:No
Display:Yes
Aspect ratio control:Yes
Dialog enhancer:No
Integrated receiver:No
Front-panel operation:No (remote required for use)
Quick play:No
Multi-angle viewing:Yes (with applicable discs)
Horizontal resolution:More than 500 lines
Video DAC:10-bit/54 MHz
Audio DAC:24-bit/192 kHz
Video ADC:MPEG-2 encoding
Audio ADC:Dolby Digital 1 (192 kbps), Dolby Digital 2 (384 kbps), or linear PCM audio encoding (1,546 kbps)
HDCD decoding:No
Title/Chapter/Thumbnail creation:Yes
Virtual titling:Yes (during the disc-editing process, you can create a "virtual title" for future playback or dubbing to a DVD-RAM or DVD-R that omits parts of the original program that viewers may find objectionable, such as commercials, language, graphic violence, etc.)
Menu:Onscreen Keyboard, EASY NAVI Menu
Frame advance:Yes
Still/freeze frame:Yes
Jog/shuttle dial on unit:No
Forward/reverse play:Yes
Speeds:1.5x fast-forward with audio, high-speed forward and reverse scan
Karaoke:No
Multilingual support:Yes (English, Spanish, French)
Remote control:Universal with TV controls
Parental controls:Yes
Recording capability:Yes (to recordable DVD or to built-in hard drive)
Advance recording:Yes
Electronic program guide:Gemstar VCR+ C3
Timer recording:2-month, 32-event
Auto clock set:Yes (with daylight savings and time zone adjust)
One-touch record:Yes
Tuner:NTSC, 181 channels
Auto channel set:Yes
Reverse-frame step:Yes
Slow motion:Yes
Instant replay:Yes (and instant skip)
VCR capability:No
Audio outputs:1 digital-audio (optical), 2 stereo analog (left/right) RCA
Audio inputs:3 stereo analog (left/right) RCA
Headphone jack:No
Video outputs:1 ColorStream Pro progressive-scan component-video output, 2 S-video, 2 composite-video, 1 RF (tuner passthrough only), 1 IR blaster (C3 IR Control for DBS and cable boxes)
Video inputs:1 HDMI digital interface, 3 S-video, 3 composite-video, 1 RF, 1 IEEE 1394/DV
Surround-sound output:Dolby Digital and DTS 5.1-channel passthrough
Simulated surround sound:3-D Virtual Surround Sound
THX-certified:No
Front-panel inputs:Yes (including IEEE 1394/DV with camcorder controls)
Power input:AC 120V, 60 Hz
Width:16.9 inches
Height:3 inches
Depth:12.6 inches
In the box:DVD recorder, audio/video interconnects, a universal remote control, remote batteries, a user's manual, and warranty information
Variations: RD-XS52SU, RD-XS52SC
