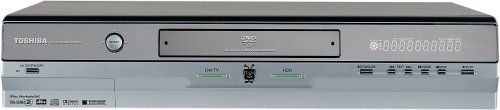

Toshiba RS-TX20

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

Toshiba RSTX20

Specifications

Disc capacity:1
Region playback:Compatible only with non-region-coded (code-free) discs and with discs coded for Region 1
Progressive scan:Yes
Switchable 480p/480i:Yes
3:2 pulldown detection:Yes (Digital Cinema Progressive)
Memory card slot:No
Includes HDD recorder:Yes (TiVo Basic Service, Series2)
HDD capacity:Up to 140 hours of A/V content (120 GB drive)
TiVo features:Pause, rewind, instant replay of live programming, and HDD recording
Monthly fees:None (but unit is upgradeable to fee-based, Home Media Feature-capable TiVo Plus Service)
Playback formats:DVD-Video (NTSC), VCD, DVD-R, DVD-RW, DVD-RAM, red book CD, CD-R, CD-RW, MP3 CD, WMA CD, JPEG image CD
Recording formats:Video-mode DVD-R, DVD-RW
Recording/editing features:Auto title/chapter/thumbnail creation
Time-slip recording/playback:Yes
Front-panel TiVo controls:Yes
IR blaster:Yes (IR blaster for cable and DBS box control--C3 Control)
Picture enhancements:Time Base Correction
MP3/JPEG combination playback: :
Firmware upgradeable:No
Display:Yes
Onscreen camcorder download controls:Yes
Disc content viewer:Yes
Comb filter:3D Y/C
Noise reduction:Video DNR (playback only)
Aspect ratio control:Yes
Dialog enhancer:No
Integrated receiver:No
Front-panel operation:No (remote required for use)
Quick play:No
Multi-angle viewing:Yes (with applicable discs)
Audio DAC:24-bit, 192 kHz
HDCD decoding:No
Custom bookmarks:No
Frame advance:Yes
Still/freeze frame:Yes
Jog/shuttle dial on unit:No
Forward/reverse play:Yes
Karaoke:No
Remote control:Yes
Recording capability:No
Advance recording:Yes
Auto clock set:Yes (with Daylight Savings Time and Time Zone adjust)
Electronic program guide:Yes (with 3-day rolling schedule)
One-touch recording:Yes
Reverse-frame step:Yes
Slow motion:Yes
Instant replay:Yes (and instant skip; both features HDD only)
VCR capability:No
Audio outputs:1 stereo analog (left/right), 1 digital (optical)
Headphone jack:No
Audio inputs:2 stereo analog (left/right)
Video outputs:1 RF (NTSC tuner passthrough only), 1 composite-video, 1 ColorStream Pro component-video, and 2 S-video
Video inputs:1 S-video, 2 composite-video, 1 RF coaxial, 1 IEEE1394/DV
Surround-sound output:Dolby Digital and DTS 5.1-channel passthrough
THX-certified:No
Front-panel inputs:Yes (including DV and S-video)
Width:16.5 inches
Height:3.25 inches
Depth:13 inches
Weight:12.1 pounds
In the box:DVD/HDD recorder/player, a remote control, remote batteries, an IR blaster cable, a user's manual, a stereo analog audio interconnect/composite-video cable, and warranty/registration information
