Home : Equipment : Toshiba : DVD : SD5980

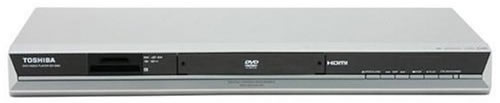

Toshiba SD-5980

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

Features

Toshiba SD-5980

Specifications

Disc capacity:1
Region playback:Compatible only with non-region-coded (code-free) discs and with discs coded for Region 1
Progressive scan:Yes (ColorStream Pro component-video outputs)
3:2 pulldown detection:Yes (Digital Cinema Progressive)
Image enhancements:Video upconversion to user-selectable high-definition 720p/1080i, including JPEG enhancement (via HDMI connections)
Memory card slot:Yes (playback of JPEG, WMA and MP3 files via Media card playback, will accept Secure Digital, Mini Secure Digital, Memory Stick, Memory Stick Pro, Memory Stick Duo, Memory Stick Duo Pro, XD Picture Card, Compact Flash and Multimedia Card)
Playback formats:DVD-Video, DVD-R, DVD-RW, VCD, CD, audio CD-R, audio CD-RW, MP3 or WMA CD-R/RW, JPEG CD-R/RW
MP3/JPEG combination playback:No
Firmware upgradeable:No
Display:Fluorescent
Aspect ratio control:Yes
Dialog enhancer:Yes (for Dolby Digital soundtracks)
Integrated receiver:No
Quick play:No
Multi-angle viewing:Yes (with applicable discs)
Black-level adjustment:Yes (and PLUGE, Picture Line Up Generation Equipment)
Video DAC:10-bit/54 MHz
Audio DAC:24-bit, 192 kHz
HDCD decoding:No
Custom bookmarks:Yes
Frame advance:Yes
Still/freeze frame:Yes
Jog/shuttle dial on unit:No
Forward/reverse play:Yes
Speeds:Forward and Reverse - 1/16x, 1/4x, 1/2x normal; scan: x2. x8, x30. x100
Karaoke:No
Remote control:Ergonomic
Picture zoom:Digital zoom
Recording capability:No
Reverse-frame step:Yes
Screen dimmer:Yes
Screen saver:Yes
Slow motion:Yes
Instant replay:No
VCR capability:No
Audio outputs:1 stereo analog (left/right), 3 digital (1 optical, 1 coaxial, 1 HDMI)
Headphone jack:No
Video outputs:HDMI, Composite-video, component-video, and S-video
Surround-sound output:Dolby Digital and DTS 5.1-channel passthrough through any digital-audio output
Simulated surround sound:Yes (3D Virtual Surround)
THX-certified:No
Front-panel inputs:No
Power input:AC 120V, 60 Hz
UPC:022265411643
Width:17 inches
Height:1.85 inches
Depth:8.1 inches
Weight:4.4 pounds
Shipping dimensions:20.5 x 4.7 x 11.4 inches (W x H x D)
Shipping weight:6.6 pounds
In the box:DVD player, remote control, remote batteries, a user's manual, a stereo analog audio interconnect/composite-video cable, a 2-meter HDMI cable, and warranty information
