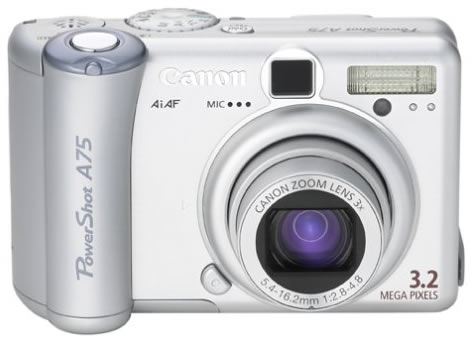

Canon PowerShot A75

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

PowerShot A75

Specifications

Type:Compact digital still camera w/ built-in flash and 3x Optical Zoom and 3.2x Digital Zoom, 10x Combined Zoom
Image capture device:3.2 MP 1/2.7" CCD
Color depth:8 bits x 3 colors
Resolution (recording pixels):640 x 480 pixels (Small), 1024 x 768 (Med Low),1600 x 1200 (Med High), 2048 x 1536 (Large);320 x 240 or 160 x 120 (Movie)
ISO sensitivity:Auto, or User Set ISO 50, 100, 200, 400
Image quality modes (JPEG):Normal, Fine, Superfine
File format:Design rule for Camera File System, DPOF Ver. 1.1 (Digital Print Order Format)
Image recording format:Still Image
Recording media:CompactFlash (CF) Card, Type I
Shooting modes:Auto, Creative (P, Av, Tv, M), Image (Portrait, Landscape, Night Scene, Fast/Slow Shutter, Stitch Assist, Movie), Special Scene
Photo effects:Vivid, Neutral, Low Sharpness, Sepia, B/W
Playback modes:Single, Index (9 Thumbnails), Magnification (Approx. 2x to 10x) or Slide Show, Movie
Erase mode:Single Images, All Images
Interfaces:USB; AV Output (NTSC/PAL Selectable, monaural audio) CF Card slot (Complied w/ Type I Standard), Direct Connection to Canon Direct Photo Printers and PictBridge compatible Printers
Lens:5.4-16.2mm, f/2.8-4.8 zoom lens (equiv. to 35-105mm in 35mm format)
Shutter speed:15-1/2000 sec. Slow shutter operates w/noise reduction. 1.3-15 sec. are manually set
Focus range:Normal AF
Light metering method:Evaluative Metering, Center-weighted average metering or Spot metering
Exposure control:Program AE, Shutter Priority AE, Aperture Priority AE, Manual Exposure Control
Compensation:+/-2.0 EV in 1/3 step increments.
White balance control:TTL Auto White Balance, Preset White Balance (Avail. settings
Optical viewfinder:Real-image optical zoom viewfinder
LCD:1.8" low-temperature polycrystalline silicon TFT color LCD
Power:Size AA Alkaline / NiMH Battery NB-2AH (x4) or AC Adapter Kit ACK600
Dimensions (W x H x D):4" x 2.5" x 1.2"/101.0 x 64.0 x 31.5 mm
Weight:Approx. 7.1 oz./200g (camera body only)
What's in the box:PowerShot A75 digital camera, 32 MB CompactFlash card, wrist strap (WS-200), USB and A/V cables, and 4 AA alkaline batteries
Software:CD-ROM includes browsing and printing software ZoomBrowser EX (Windows) and ImageBrowser (Mac). Other software includes PhotoStitch, plus photo and movie manipulation software ArcSoft PhotoStudio and VideoImpression.
