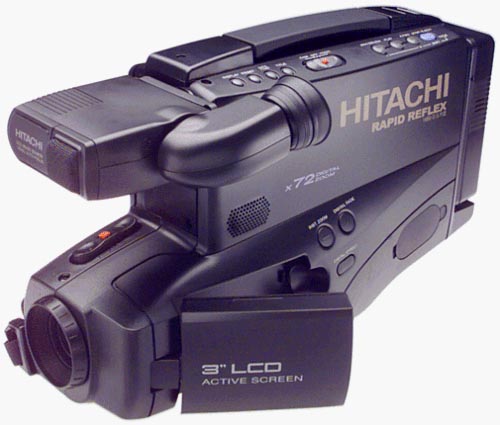

Hitachi VM-7500LA VHS Camcorder

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features:

Product Description From Hitachi:

The VM7500LA features a 16x optical zoom, as well as a 72x digital zoom, and the ability to take wide-angle shots. The camcorder can also shoot in as little illumination as 0.3 lux. Five digital fades and five digital effects give you the opportunity to add a touch of professionalism to your footage. To compose and review shots, users have two options: a black-and- white optical viewfinder and a 3-inch swivel-mounted color LCD. A built-in playback speaker lets you hear the footage you've just shot. A manual character titler also lets you label the footage you're shooting.

To make sure your shooting experience is as easy as possible, the VM7500LA automatically sets shutter speed, iris, white balance, focus, and backlight compensation. It will even automatic select macro mode when appropriate. The VM7500LA comes equipped with a rechargeable battery that is capable of shooting for 1.3 hours continuously (according to Hitachi) and an AC adapter/charger.

Hitachi VM7500LA

Specifications

Video format: VHS
Audio: Mono
Maximum CCD resolution: 270,000 pixels
CCD size: 0.25 inches
Eyepiece viewfinder: Black and white
LCD screen size: 3.0 inches
LCD swivel: Yes
Aperture: f/1.4
Filter diameter: 46mm
Optical zoom (x): 16x
Digital zoom: 72x
Autolight: Yes
Hot shoe for external light: No
Infrared capability: No
Remote included: No
Digital camera capability: No
Included still memory: N/A
Custom titling: Yes
Fade options: 5 modes
Special effects: 5 digital effects
Motion sensor: No
Audio sensor: No
IEEE1394 output: No
Connections: A/V output, US pin
Battery type: 0.85 Ah lead-acid battery
Included in box: AC adapter and charger
