Konica Minolta Maxxum STsi

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

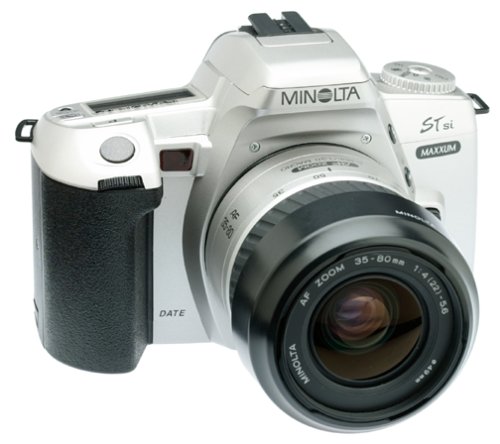

Konica Minolta Maxxum STsi

Specifications

Type: 35mm single-lens reflex
Lens: 30-80mm lens included, accepts any Minolta Maxxum autofocus lens
Autofocus system: TTL (through the lens) phase-detection system
Sensor: 1 CCD line sensor
Focus modes: Autofocus or manual focus, selectable
Focus lock: Yes
Exposure: Programmed autoexposure, subject program selection, aperture priority, shutter priority, manual
Subject program modes: Portrait, landscape, close-up, sports action, night portrait
Manual setting: Shutter speed, aperture
Metering types: TTL metering, 8-segment honeycomb-pattern metering, spot metering, direct TTL off-the-film metering for flash
Film speed: Automatic setting for DX-coded films from ISO 25 to 5,000, manual setting from ISO 6 to 6,400
Autoexposure lock: Yes
Shutter: Electronically controlled, vertical traverse, focal-plane type
Shutter speeds: 1/2000 to 30 seconds, or bulb
Flash: Built-in automatic, automatic pop-up with manual push-down
Flash modes: Autoflash, red-eye reduction, fill flash, flash cancel, wireless remote flash
Viewfinder: Eye-level fixed, roof mirror type
Diopter: -1
Film transport: Automatic threading, auto advance to first frame, auto frame advance, auto rewind; midroll rewind possible
Self-timer: Approximately 10-second delay of shutter release, cancelable
Date imprinting: Yes
Panorama mode: Selectable
Double-exposure mode: Yes
Continuous film advance: Yes
Power source: 2 3-volt CR2 lithium batteries, 1 CR2025 lithium battery for quartz date
In the box: Minolta Maxxum STsi camera, 35-80mm lens, wide strap, 2 3-volt CR2 batteries, 1 CR2025 battery, front and rear lens cap, body cap
Weight: 12.3 ounces without battery
Dimensions (WxHxD): 5.3 x 3.5 x 2.3 inches
