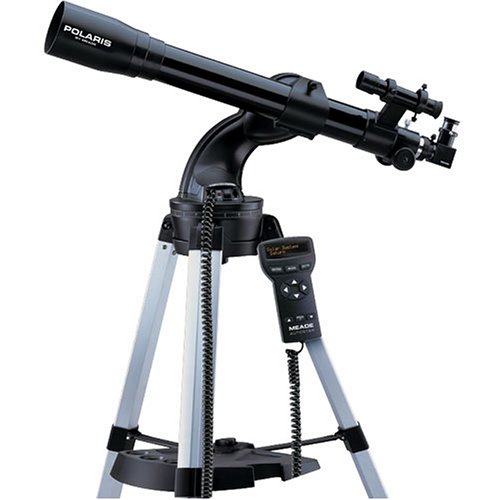

Meade DS-2060AT

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual

Features

Meade DS 2060 AT

Specifications

Optical design:Refractor
Clear aperture:60mm
Focal length:700mm
Focal ratio:f/11.7
Resolving power:1.9 arc secs
Max power:200x
Mounting:Single-arm motorized Alt-Az
Alignment:Altazimuth
Slew speeds:1x sidereal to 5.5 degrees per second in 9 increments
Tripod:Aluminum, full-length; adjustable with accessory tray
Optical tube dimensions:2.5 by 2.7 inches
Batteries:8 AA (not included)
Autostar processor:68HC11, 8MHz
Autostar flash memory:512KB, reloadable
Autostar keypad:10 key alphanumeric
Autostar display:2 line, 16 character LCD
Autostar backlight:Red LED
Autostar RS-232:Yes
Autostar coil cord:24 inches
Autostar database:More than 1400 objects
Autostar length:5.6 inches
Autostar width (LCD end):3.08 inches
Autostar width (connector end):2.1 inches
Autostar depth:0.93 inches
Autostar net weight:0.35 pounds
