Panasonic Pro AG-DVC30 MiniDV Camcorder

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

From Panasonic:
The AG-DVC30's Leica Dicomar 16x optical zoom lens answers a broad range of shooting needs, delivering superb results from 39.5mm wide angle all the way to 632mm telephoto (both 35mm lens equivalents). In wide-angle performance — critical in broadcast and other professional applications — this lens is tops in its class. Behind this outstanding performance are the advanced optical technologies and expertise that have made Leica Camera AG one of the most respected names in the camera world. This new 16x optical zoom lens system uses low-dispersion glass and aspherical lenses to reduce color aberration and boost resolution. Use of a special multi-coating process dramatically reduces flare and ghosts. The result: sharp, crisp, beautifully rendered pictures with vivid colors, delicate nuances, and exceptional shading.

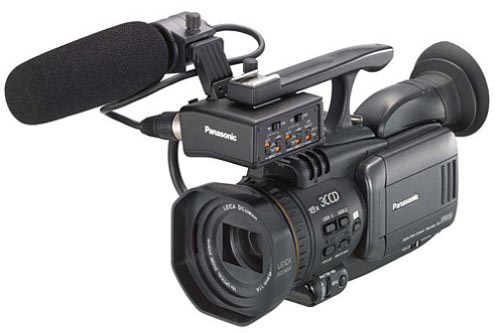

Panasonic Pro AG-DVC30
Panasonic AGDVC30

Specifications

Video format:
MiniDV
Audio: 16-bit/12-bit PCM digital sound
Maximum CCD resolution: 410,000 pixels, 3-CCD
CCD size: 0.25 inches
Eyepiece viewfinder: 0.44-inch color/BW switchable LCD, approx. 180,000 pixels
LCD screen size: 3.5-inch TFT color, approx. 200,000 pixels
LCD swivel: Yes
Aperture: F/1.6
Filter diameter: 43 millimeters
Optical zoom: 16x
Digital zoom: 160x
Focal length: 4.1 to 65.6 millimeters (35mm equivalent: 39.5 to 623 millimeters)
Focus: Manual, full automatic
Frame rates: 60i, 30fps frame mode
Shutter speeds: 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000
CineGamma: Yes
White balance: Incandescent, outdoor, manual set, WB lock
Gain selection: 0, +3, +6, +9, +12, +15, +18
Super iris: Backlight, spotlight, AE shift
Color matrix:
Adjustable
SMPTE color bar generator:
Yes
Programmable user buttons:
3 user sets and color bars
Minimum luminance: 4 lux
Autolight: No
Hot shoe for external light: Yes
Image stabilization: Yes
Infrared capability: Yes
Remote included: Yes
Headphone jack: Yes
Digital still capability: No
MPEG movie mode: No
Motion sensor: No
Audio sensor: No
USB streaming: No
IEEE1394 (Firewire) output: Yes
USB output: No
S-Video output: Yes
Battery type: Lithium ion
Width: 4.38 inches
Height: 6.31 inches
Depth: 10 inches
Weight: 2.65 pounds (with battery and cassette)
In the box: Camera, handle, lens hood, lens cap, shoulder strap, AC cord, AV cables, DC cord, battery, AC adapter, large eye cup, wireless remote control unit, Master Series tape
