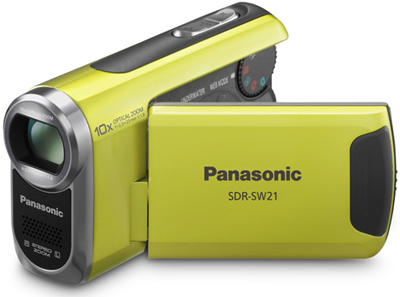

Panasonic SDR-SW21G

Panasonic SDR-SW21G

User Manual

Sorry, we do not currently have a manual available for this item.
Request a manual | Submit a manual



Recording media SD/SDHC Memory Card
Recording Format MPEG2, H.264/AVC (Motion Image)
JPEG (Still Image)
Image Sensor (Total) 1/6" CCD
Image Sensor (Effective) Motion Image
4:3 = 0.34 megapixels
16:9 = 0.30 megapixels
Still Image
4:3 = 0.35 megapixels
Total Pixels 0.68 megapixels
F Value F1.8 (Wide)
F2.4 (Tele)
Optical Zoom 10x
Digital Zoom 10x-25x
Super Digital Zoom 10x - 700x
Focal Length 2.3 - 23 mm
35mm Film Camera Equivalent Motion Image
4:3 = 43.9-439 mm
16:9 = 43.9-439 mm
Still Picture
4:3 = 43.7-437 mm
Lens Type Panasonic
Image Stabilizer Electronic Image Stabilizer (EIS)
Still Picture Recording 4:3
0.3 megapixels (640 x 480)
Shutter Speed (Motion Image) 1/30-1/8000
Shutter Speed (Still Image) 1/30-1/500
Minimum Illumination 6 Lux (1/30 Low Light Mode)
2 Lux (Magic Pix)
Focus Auto/Manual
White Balance Auto/Indoor/Outdoor/White Set/Underwater
Iris Auto/Manual
LCD Monitor 2.7" Wide (123,200 Dots)
MagicPix Images Yes
Microphone Stereo mic., Zoom mic.
Speaker Dynamic type
On-Screen Display Language English, French, Spanish
Video Recording Format MPEG2
Recording Mode XP [10Mbps/VBR], [704 x 480]
SP [5Mbps/VBR], [704 x 480]
LP [2.5Mbps/VBR], [704 x 480]
Playback Mode XP [10Mbps/VBR], [704 x 480]
SP [5Mbps/VBR], [704 x 480]
LP [2.5Mbps/VBR], [704 x 480]
Audio Recording System Dolby Digital [2ch], MPEG1 Audio Layer 2
Built-in SD Slot Yes
PictBridge Compatible Yes
DPOF Max. 999 images
Audio Output Yes
USB 2.0 Hi-Speed
AV Out
AC Adaptor Yes
AV Cable Yes
USB Cable Yes
Software VideoCam Suite 2.0
Rechargeable Battery Pack min. 940 mAh/Lithium-Ion
Power Supply DC3.6V/5.0V
Power Consumption 2.9W
Dimensions (H x W x D) 2.68'' x 1.38'' x 4.61''
Weight (lbs) 0.52 lbs
AC Cable Yes
DC Cable Yes
