Panasonic DMR-E75VS

User Manual

Operating manual
To download the operating manual, right-click the download icon and select "Save As" (or "Save link as", "Save target as", etc).
If you're happy with the manual, a small donation would be very much appreciated. Thanks!

Features

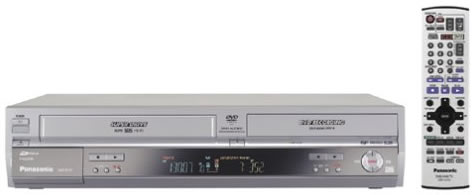

Panasonic DMR-E75VS

Specifications

Disc capacity:1
Region playback:Compatible only with discs coded for Region 1 and for All Regions
Progressive scan:Yes
Switchable 480p/480i:Yes
3:2 pulldown detection:No
Memory card slot:No
Hard drive:No
Playback formats:DVD-Video (NTSC), DVD-Audio (2-channel), DVD-RAM, DVD-R, VHS videocassette, red book CD, CD-R, CD-RW, MP3 CD
Recording formats:DVD-RAM, DVD-R, VHS tape
Recording features:Simultaneous record and play, one-touch 2-way dubbing
One-touch dubbing:VHS to DVD or DVD to VHS (as long as source is not copy protected)
Time Slip:Chasing playback, simultaneous record and play, Time Slip button
Rapid random access:Recording and playback
Relief recording:No
Recording modes:XP/SP/LP/EP/FR
Blingual recording:DVD-RAM only
Picture enhancements:Input TBC, 3D Y/C Separation, 3D Noise Reduction, Block Noise Reduction, Mosquito Noise Reduction
Firmware upgradeable:No
Display:Yes
Aspect ratio control:Yes
Dialog enhancer:No
Integrated receiver:No
Front-panel operation:No (remote required for use)
Quick play:No
Multi-angle viewing:Yes (with applicable discs)
Black-level adjustment:Yes
Horizontal resolution:More than 500 lines
Video DAC:54 MHz/10-bit
Audio DAC:96 kHz, 24-bit
HDCD decoding:No
Direct Navigator:Yes (revised)
Chapter preview:Yes (including from recordable discs)
Custom bookmarks:No
Frame advance:Yes
Still/freeze frame:Yes
Forward/reverse play:Yes
Karaoke:No
Multilingual support:Yes (English, Spanish, French)
Remote control:Universal (with TV and DVD control)
Parental controls:Yes
Picture zoom:No
Random play:Yes
Advance recording:Up to 16 programs, up to 1 month in advance
Programming guide:No
Reverse-frame step:Yes
QuickView:Yes
Slow motion:Yes
Instant replay:No
Text display:No
VCR capability:Yes
Audio outputs:1 stereo analog (left/right), 1 digital (optical)
Audio inputs:2 stereo analog (left/right) RCA
Headphone jack:No
Video outputs:2 composite-, 1 component-, and 1 S-video
Video inputs:2 composite-video, 2 S-video, 1 RF
Surround-sound output:Dolby Digital and DTS 5.1-channel passthrough
Simulated surround sound:Advanced Surround (V.S.S.) simulated surround through 2 speakers
THX-certified:No
Front-panel inputs:Yes
Power input:AC 120V, 60 Hz
Power consumption:31 watts (4 watts in standby)
Width:16.94 inches
Height:3.5 inches
Depth:13.81 inches
Weight:12.79 pounds
In the box:DVD player/recorder, a remote control, remote batteries, an RF audio/video interconnect, a stereo analog audio/composite-video interconnect, an AC power cord, a user's manual, and a registration card
